#include <Panzer_UniqueGlobalIndexer.hpp>

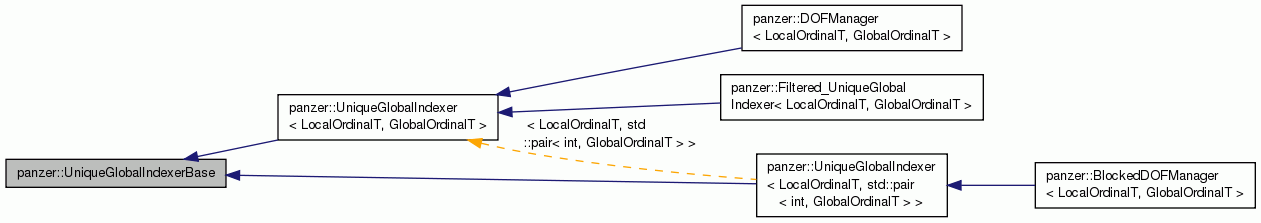

Inheritance diagram for panzer::UniqueGlobalIndexerBase:

Public Member Functions
virtual	~UniqueGlobalIndexerBase ()=0
	Pure virtual destructor: prevents warnings with inline empty implementation. More...

virtual Teuchos::RCP < Teuchos::Comm< int > >	getComm () const =0

virtual int	getNumFields () const =0

virtual int	getFieldNum (const std::string &str) const =0
	Get the number used for access to this field. More...

virtual void	getFieldOrder (std::vector< std::string > &fieldOrder) const =0

virtual const std::string &	getFieldString (int num) const =0
	Reverse lookup of the field string from a field number. More...

virtual void	getElementBlockIds (std::vector< std::string > &elementBlockIds) const =0

virtual bool	fieldInBlock (const std::string &field, const std::string &block) const =0

virtual const std::vector< int > &	getBlockFieldNumbers (const std::string &blockId) const =0

virtual const std::vector< int > &	getGIDFieldOffsets (const std::string &blockId, int fieldNum) const =0
	Use the field pattern so that you can find a particular field in the GIDs array. More...

virtual const std::pair < std::vector< int > , std::vector< int > > &	getGIDFieldOffsets_closure (const std::string &blockId, int fieldNum, int subcellDim, int subcellId) const =0
	Use the field pattern so that you can find a particular field in the GIDs array. This version lets you specify the sub cell you are interested in and gets the closure. Meaning all the IDs of equal or lesser sub cell dimension that are contained within the specified sub cell. For instance for an edge, this function would return offsets for the edge and the nodes on that edge. More...

virtual int	getElementBlockGIDCount (const std::string &blockId) const =0
	How any GIDs are associate with a particular element block. More...

virtual int	getElementBlockGIDCount (const std::size_t &blockIndex) const =0
	How any GIDs are associate with a particular element block. More...

Detailed Description

Definition at line 61 of file Panzer_UniqueGlobalIndexer.hpp.

Constructor & Destructor Documentation

panzer::UniqueGlobalIndexerBase::~UniqueGlobalIndexerBase ( )

inlinepure virtual

Pure virtual destructor: prevents warnings with inline empty implementation.

Definition at line 419 of file Panzer_UniqueGlobalIndexer.hpp.

Member Function Documentation

virtual Teuchos::RCP<Teuchos::Comm<int> > panzer::UniqueGlobalIndexerBase::getComm ( ) const

pure virtual

Get communicator associated with this global indexer.

Implemented in panzer::DOFManager< LO, GO >, panzer::Filtered_UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, std::pair< int, GlobalOrdinalT > >, and panzer::BlockedDOFManager< LocalOrdinalT, GlobalOrdinalT >.

virtual int panzer::UniqueGlobalIndexerBase::getNumFields ( ) const

pure virtual

Get the number of fields (total) stored by this DOF manager

Implemented in panzer::BlockedDOFManager< LocalOrdinalT, GlobalOrdinalT >, panzer::DOFManager< LO, GO >, panzer::Filtered_UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, and panzer::UniqueGlobalIndexer< LocalOrdinalT, std::pair< int, GlobalOrdinalT > >.

virtual int panzer::UniqueGlobalIndexerBase::getFieldNum ( const std::string & str ) const

pure virtual

Get the number used for access to this field.

Get the number used for access to this field. This is used as the input parameter to the other functions that provide access to the global unknowns.

Parameters

[in] str Human readable name of the field

Returns: A unique integer associated with the field if the field exisits. Otherwise a -1 is returned.

Implemented in panzer::DOFManager< LO, GO >, panzer::Filtered_UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, std::pair< int, GlobalOrdinalT > >, and panzer::BlockedDOFManager< LocalOrdinalT, GlobalOrdinalT >.

virtual void panzer::UniqueGlobalIndexerBase::getFieldOrder ( std::vector< std::string > & fieldOrder ) const

pure virtual

Get the field order used by this global indexer.

Implemented in panzer::BlockedDOFManager< LocalOrdinalT, GlobalOrdinalT >, panzer::DOFManager< LO, GO >, panzer::Filtered_UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, and panzer::UniqueGlobalIndexer< LocalOrdinalT, std::pair< int, GlobalOrdinalT > >.

virtual const std::string& panzer::UniqueGlobalIndexerBase::getFieldString ( int num ) const

pure virtual

Reverse lookup of the field string from a field number.

Parameters

[in] num Field number. Assumed to be a valid field number. Computed from getFieldNum.

Returns: Field name.

Implemented in panzer::DOFManager< LO, GO >, panzer::Filtered_UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, and panzer::BlockedDOFManager< LocalOrdinalT, GlobalOrdinalT >.

virtual void panzer::UniqueGlobalIndexerBase::getElementBlockIds ( std::vector< std::string > & elementBlockIds ) const

pure virtual

What are the blockIds included in this connection manager?

Implemented in panzer::DOFManager< LO, GO >, panzer::Filtered_UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, std::pair< int, GlobalOrdinalT > >, and panzer::BlockedDOFManager< LocalOrdinalT, GlobalOrdinalT >.

virtual bool panzer::UniqueGlobalIndexerBase::fieldInBlock	(	const std::string &	field,
		const std::string &	block
	)		const

pure virtual

Is the specified field in the element block?

Implemented in panzer::DOFManager< LO, GO >, panzer::Filtered_UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, std::pair< int, GlobalOrdinalT > >, and panzer::BlockedDOFManager< LocalOrdinalT, GlobalOrdinalT >.

virtual const std::vector<int>& panzer::UniqueGlobalIndexerBase::getBlockFieldNumbers ( const std::string & blockId ) const

pure virtual

Get field numbers associated with a particular element block.

Implemented in panzer::DOFManager< LO, GO >, panzer::Filtered_UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, std::pair< int, GlobalOrdinalT > >, and panzer::BlockedDOFManager< LocalOrdinalT, GlobalOrdinalT >.

virtual const std::vector<int>& panzer::UniqueGlobalIndexerBase::getGIDFieldOffsets	(	const std::string &	blockId,
		int	fieldNum
	)		const

pure virtual

Use the field pattern so that you can find a particular field in the GIDs array.

Implemented in panzer::Filtered_UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::DOFManager< LO, GO >, panzer::UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, std::pair< int, GlobalOrdinalT > >, and panzer::BlockedDOFManager< LocalOrdinalT, GlobalOrdinalT >.

virtual const std::pair<std::vector<int>,std::vector<int> >& panzer::UniqueGlobalIndexerBase::getGIDFieldOffsets_closure	(	const std::string &	blockId,
		int	fieldNum,
		int	subcellDim,
		int	subcellId
	)		const

pure virtual

Use the field pattern so that you can find a particular field in the GIDs array. This version lets you specify the sub cell you are interested in and gets the closure. Meaning all the IDs of equal or lesser sub cell dimension that are contained within the specified sub cell. For instance for an edge, this function would return offsets for the edge and the nodes on that edge.

Parameters

[in]	blockId
[in]	fieldNum
[in]	subcellDim
[in]	subcellId

Implemented in panzer::DOFManager< LO, GO >, panzer::Filtered_UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, std::pair< int, GlobalOrdinalT > >, and panzer::BlockedDOFManager< LocalOrdinalT, GlobalOrdinalT >.

virtual int panzer::UniqueGlobalIndexerBase::getElementBlockGIDCount ( const std::string & blockId ) const

pure virtual

How any GIDs are associate with a particular element block.

This is a per-element count. If you have a quad element with two piecewise bi-linear fields this method returns 8.

Implemented in panzer::BlockedDOFManager< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, std::pair< int, GlobalOrdinalT > >, panzer::DOFManager< LO, GO >, and panzer::Filtered_UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >.

virtual int panzer::UniqueGlobalIndexerBase::getElementBlockGIDCount ( const std::size_t & blockIndex ) const

pure virtual

How any GIDs are associate with a particular element block.

This is a per-element count. If you have a quad element with two piecewise bi-linear fields this method returns 8.

Implemented in panzer::BlockedDOFManager< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >, panzer::UniqueGlobalIndexer< LocalOrdinalT, std::pair< int, GlobalOrdinalT > >, panzer::DOFManager< LO, GO >, and panzer::Filtered_UniqueGlobalIndexer< LocalOrdinalT, GlobalOrdinalT >.

The documentation for this class was generated from the following file:

Panzer_UniqueGlobalIndexer.hpp
