panzer::Integrator_DivBasisTimesScalar< EvalT, Traits > Class Template Reference

Computes $ Ma(x)b(x)\cdots\int s(x)\nabla\cdot\vec{\phi(x)}\,dx $. More...

#include <Panzer_Integrator_DivBasisTimesScalar.hpp>

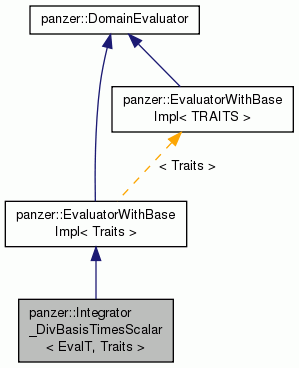

Inheritance diagram for panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >:
Inheritance graph
[legend]

Classes

struct  FieldMultTag
 This empty struct allows us to optimize operator()() depending on the number of field multipliers. More...

struct  SharedFieldMultTag
 This empty struct allows us to optimize operator()() depending on the number of field multipliers. More...


Public Member Functions

 Integrator_DivBasisTimesScalar (const panzer::EvaluatorStyle &evalStyle, const std::string &resName, const std::string &valName, const panzer::BasisIRLayout &basis, const panzer::IntegrationRule &ir, const double &multiplier=1, const std::vector< std::string > &fmNames=std::vector< std::string >())
 Main Constructor. More...

 Integrator_DivBasisTimesScalar (const Teuchos::ParameterList &p)
 ParameterList Constructor. More...

void postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)
 Post-Registration Setup. More...

void evaluateFields (typename Traits::EvalData d)
 Evaluate Fields. More...

template<int NUM_FIELD_MULT>
KOKKOS_INLINE_FUNCTION void operator() (const FieldMultTag< NUM_FIELD_MULT > &tag, const Kokkos::TeamPolicy< PHX::exec_space >::member_type &team) const
 Perform the integration. Main memory version. More...

template<int NUM_FIELD_MULT>
KOKKOS_INLINE_FUNCTION void operator() (const SharedFieldMultTag< NUM_FIELD_MULT > &tag, const Kokkos::TeamPolicy< PHX::exec_space >::member_type &team) const
 Perform the integration. Shared memory version. More...

- Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void setDetailsIndex (const int di)
 An evaluator builder sets the details index. More...

- Public Member Functions inherited from panzer::DomainEvaluator
 DomainEvaluator (DomainType domain=ALL)
 Constructor. More...

virtual ~DomainEvaluator ()=default
 Default destructor. More...

void setDomain (const DomainType domain)
 Set the domain for the evaluator. More...

DomainType getDomain ()
 Get the domain for the evaluator. More...

virtual int cellStartIndex (const panzer::Workset &workset) const
 Returns the starting cell for the specified domain for a given workset. More...

virtual int cellEndIndex (const panzer::Workset &workset) const
 Returns the non-inclusive end cell for the specified domain for a given workset. More...


Private Types

using ScalarT = typename EvalT::ScalarT
 The scalar type. More...

using scratch_view = Kokkos::View< ScalarT *,typename PHX::DevLayout< ScalarT >::type, typename PHX::exec_space::scratch_memory_space, Kokkos::MemoryUnmanaged >
 Type for shared memory. More...


Private Member Functions

Teuchos::RCP
< Teuchos::ParameterList
getValidParameters () const
 Get Valid Parameters. More...


Private Attributes

const panzer::EvaluatorStyle evalStyle_
 An enum determining the behavior of this Evaluator. More...

PHX::MDField< ScalarT, Cell,
BASIS >
field_
 A field to which we'll contribute, or in which we'll store, the result of computing this integral. More...

PHX::MDField< const ScalarT,
Cell, IP >
scalar_
 A field representing the scalar function we're integrating ( $ s $). More...

double multiplier_
 The scalar multiplier out in front of the integral ( $ M $). More...

std::vector< PHX::MDField
< const ScalarT, Cell, IP > >
fieldMults_
 The (possibly empty) list of fields that are multipliers out in front of the integral ( $ a(x) $, $ b(x) $, etc.). More...

Kokkos::View< Kokkos::View
< const ScalarT **, typename
PHX::DevLayout< ScalarT >
::type, PHX::Device > * >
kokkosFieldMults_
 The Kokkos::View representation of the (possibly empty) list of fields that are multipliers out in front of the integral ( $ a(x) $, $ b(x) $, etc.). More...

std::size_t numQP_
 The number of quadrature points for each cell. More...

std::string basisName_
 The name of the basis we're using. More...

std::size_t basisIndex_
 The index in the Workset bases for our particular BasisIRLayout name. More...

PHX::MDField< double,
panzer::Cell, panzer::BASIS,
panzer::IP >
basis_
 The scalar basis information necessary for integration. More...

bool use_shared_memory
 If set to true, device shared memory will be used. More...


Additional Inherited Members

- Public Types inherited from panzer::DomainEvaluator
enum  DomainType : int {
  OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,
  ALL =4
}
 Domain types supported by worksets. More...

- Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor wda


Detailed Description

template<typename EvalT, typename Traits>
class panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >

Computes $ Ma(x)b(x)\cdots\int s(x)\nabla\cdot\vec{\phi(x)}\,dx $.

Evaluates the integral

\[ Ma(x)b(x)\cdots\int s(x)\nabla\cdot\vec{\phi(x)}\,dx, \]

where $ M $ is some constant, $ a(x) $, $ b(x) $, etc., are some fields that depend on position, $ s $ is some scalar function, and $ \vec{\phi} $ is some H-div basis.

Definition at line 81 of file Panzer_Integrator_DivBasisTimesScalar.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >
using panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::ScalarT = typename EvalT::ScalarT
private

The scalar type.

Definition at line 285 of file Panzer_Integrator_DivBasisTimesScalar.hpp.

template<typename EvalT , typename Traits >
using panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::scratch_view = Kokkos::View<ScalarT* ,typename PHX::DevLayout<ScalarT>::type,typename PHX::exec_space::scratch_memory_space,Kokkos::MemoryUnmanaged>
private

Type for shared memory.

Definition at line 288 of file Panzer_Integrator_DivBasisTimesScalar.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >
panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::Integrator_DivBasisTimesScalar ( const panzer::EvaluatorStyle evalStyle,
const std::string &  resName,
const std::string &  valName,
const panzer::BasisIRLayout basis,
const panzer::IntegrationRule ir,
const double &  multiplier = 1,
const std::vector< std::string > &  fmNames = std::vector<std::string>()
)

Main Constructor.

Creates an Evaluator to evaluate the integral

\[ Ma(x)b(x)\cdots\int s(x)\nabla\cdot\vec{\phi}(x)\,dx, \]

where $ M $ is some constant, $ a(x) $, $ b(x) $, etc., are some fields that depend on position, $ s $ is some scalar function, and $ \vec{\phi} $ is some H-div basis.

Parameters
[in]evalStyleAn enum declaring the behavior of this Evaluator, which is to either:
  • compute and contribute (CONTRIBUTES), or
  • compute and store (EVALUATES).
[in]resNameThe name of either the contributed or evaluated field, depending on evalStyle.
[in]valNameThe name of the scalar value being integrated ( $ s $).
[in]basisThe H-div basis that you'd like to use ( $ \vec{\phi} $).
[in]irThe integration rule that you'd like to use.
[in]multiplierThe scalar multiplier out in front of the integral you're computing ( $ M $). If not specified, this defaults to 1.
[in]fmNamesA list of names of fields that are multipliers out in front of the integral you're computing ( $ a(x) $, $ b(x) $, etc.). If not specified, this defaults to an empty vector.
Exceptions
std::invalid_argumentIf any of the inputs are invalid.
std::logic_errorIf the basis supplied is not an H-div basis.

Definition at line 73 of file Panzer_Integrator_DivBasisTimesScalar_impl.hpp.

template<typename EvalT , typename Traits >
panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::Integrator_DivBasisTimesScalar ( const Teuchos::ParameterList p)

ParameterList Constructor.

Creates an Evaluator to evaluate the integral

\[ Ma(x)b(x)\cdots\int s(x)\nabla\cdot\vec{\phi}(x)\,dx, \]

where $ M $ is some constant, $ a(x) $, $ b(x) $, etc., are some fields that depend on position, $ s $ is some scalar function, and $ \vec{\phi} $ is some H-div basis.

Note
This constructor exists to preserve the older way of creating an Evaluator with a ParameterList; however, it is strongly advised that you not use this ParameterList Constructor, but rather that you favor the Main Constructor with its compile-time argument checking instead.
Parameters
[in]pA ParameterList of the form
<ParameterList>
<Parameter name = "Residual Name" type = "std::string" value = (required) />
<Parameter name = "Value Name" type = "std::string" value = (required) />
<Parameter name = "Basis" type = "RCP<panzer::BasisIRLayout>" value = (required) />
<Parameter name = "IR" type = "RCP<panzer::IntegrationRule>" value = (required) />
<Parameter name = "Multiplier" type = "double" value = (required) />
<Parameter name = "Field Multipliers" type = "RCP<const std::vector<std::string>>" value = null (default)/>
</ParameterList>
where
  • "Residual Name" is the name for the term this Evaluator is evaluating,
  • "Value Name" is the name of the scalar value being integrated ( $ s $),
  • "Basis" is the H-div basis that you'd like to use ( $ \vec{\phi} $),
  • "IR" is the integration rule that you'd like to use,
  • "Multiplier" is the scalar multiplier out in front of the integral you're computing ( $ M $), and
  • "Field Multipliers" is an optional list of names of fields that are multipliers out in front of the integral you're computing ( $ a(x) $, $ b(x) $, etc.).

Definition at line 154 of file Panzer_Integrator_DivBasisTimesScalar_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >
void panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::postRegistrationSetup ( typename Traits::SetupData  d,
PHX::FieldManager< Traits > &  fm
)

Post-Registration Setup.

Get the Kokkos::Views of the field multipliers, and determine the index in the Workset bases for our particular basis name.

Parameters
[in]sdEssentially a list of Worksets, which are collections of cells (elements) that all live on a single process.
[in]fmThis is unused, though part of the interface.

Definition at line 185 of file Panzer_Integrator_DivBasisTimesScalar_impl.hpp.

template<typename EvalT , typename Traits >
void panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::evaluateFields ( typename Traits::EvalData  d)

Evaluate Fields.

This actually performs the integration by calling operator()() in a Kokkos::parallel_for over the cells in the Workset.

Parameters
[in]worksetThe Workset on which you're going to do the integration.

Definition at line 384 of file Panzer_Integrator_DivBasisTimesScalar_impl.hpp.

template<typename EvalT , typename Traits >
template<int NUM_FIELD_MULT>
KOKKOS_INLINE_FUNCTION void panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::operator() ( const FieldMultTag< NUM_FIELD_MULT > &  tag,
const Kokkos::TeamPolicy< PHX::exec_space >::member_type &  team
) const

Perform the integration. Main memory version.

Generally speaking, for a given cell in the Workset, this routine loops over quadrature points and bases to perform the integration, scaling the vector field to be integrated by the multiplier ( $ M $) and any field multipliers ( $ a(x) $, $ b(x) $, etc.).

Note
Optimizations are made for the cases in which we have no field multipliers or only a single one.
Parameters
[in]tagAn indication of the number of field multipliers we have; either 0, 1, or something else.
[in]cellThe cell in the Workset over which to integrate.

Definition at line 212 of file Panzer_Integrator_DivBasisTimesScalar_impl.hpp.

template<typename EvalT , typename Traits >
template<int NUM_FIELD_MULT>
KOKKOS_INLINE_FUNCTION void panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::operator() ( const SharedFieldMultTag< NUM_FIELD_MULT > &  tag,
const Kokkos::TeamPolicy< PHX::exec_space >::member_type &  team
) const

Perform the integration. Shared memory version.

Generally speaking, for a given cell in the Workset, this routine loops over quadrature points and bases to perform the integration, scaling the vector field to be integrated by the multiplier ( $ M $) and any field multipliers ( $ a(x) $, $ b(x) $, etc.).

Note
Optimizations are made for the cases in which we have no field multipliers or only a single one.
Parameters
[in]tagAn indication of the number of field multipliers we have; either 0, 1, or something else.
[in]cellThe cell in the Workset over which to integrate.

Definition at line 286 of file Panzer_Integrator_DivBasisTimesScalar_impl.hpp.

template<typename EvalT , typename TRAITS >
Teuchos::RCP< Teuchos::ParameterList > panzer::Integrator_DivBasisTimesScalar< EvalT, TRAITS >::getValidParameters ( ) const
private

Get Valid Parameters.

Get all the parameters that we support such that the ParameterList Constructor can do some validation of the input ParameterList.

Returns
A ParameterList with all the valid parameters (keys) in it. The values tied to those keys are meaningless default values.

Definition at line 442 of file Panzer_Integrator_DivBasisTimesScalar_impl.hpp.

Member Data Documentation

template<typename EvalT , typename Traits >
const panzer::EvaluatorStyle panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::evalStyle_
private

An enum determining the behavior of this Evaluator.

This Evaluator will compute the result of its integration and then:

  • CONTRIBUTES: contribute it to a specified residual, not saving anything; or
  • EVALUATES: save it under a specified name for future use.

Definition at line 298 of file Panzer_Integrator_DivBasisTimesScalar.hpp.

template<typename EvalT , typename Traits >
PHX::MDField<ScalarT, Cell, BASIS> panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::field_
private

A field to which we'll contribute, or in which we'll store, the result of computing this integral.

Definition at line 304 of file Panzer_Integrator_DivBasisTimesScalar.hpp.

template<typename EvalT , typename Traits >
PHX::MDField<const ScalarT, Cell, IP> panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::scalar_
private

A field representing the scalar function we're integrating ( $ s $).

Definition at line 310 of file Panzer_Integrator_DivBasisTimesScalar.hpp.

template<typename EvalT , typename Traits >
double panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::multiplier_
private

The scalar multiplier out in front of the integral ( $ M $).

Definition at line 316 of file Panzer_Integrator_DivBasisTimesScalar.hpp.

template<typename EvalT , typename Traits >
std::vector<PHX::MDField<const ScalarT, Cell, IP> > panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::fieldMults_
private

The (possibly empty) list of fields that are multipliers out in front of the integral ( $ a(x) $, $ b(x) $, etc.).

Definition at line 322 of file Panzer_Integrator_DivBasisTimesScalar.hpp.

template<typename EvalT , typename Traits >
Kokkos::View<Kokkos::View<const ScalarT**,typename PHX::DevLayout<ScalarT>::type,PHX::Device>*> panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::kokkosFieldMults_
private

The Kokkos::View representation of the (possibly empty) list of fields that are multipliers out in front of the integral ( $ a(x) $, $ b(x) $, etc.).

Definition at line 329 of file Panzer_Integrator_DivBasisTimesScalar.hpp.

template<typename EvalT , typename Traits >
std::size_t panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::numQP_
private

The number of quadrature points for each cell.

Definition at line 334 of file Panzer_Integrator_DivBasisTimesScalar.hpp.

template<typename EvalT , typename Traits >
std::string panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::basisName_
private

The name of the basis we're using.

Definition at line 339 of file Panzer_Integrator_DivBasisTimesScalar.hpp.

template<typename EvalT , typename Traits >
std::size_t panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::basisIndex_
private

The index in the Workset bases for our particular BasisIRLayout name.

Definition at line 345 of file Panzer_Integrator_DivBasisTimesScalar.hpp.

template<typename EvalT , typename Traits >
PHX::MDField<double, panzer::Cell, panzer::BASIS, panzer::IP> panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::basis_
private

The scalar basis information necessary for integration.

Definition at line 350 of file Panzer_Integrator_DivBasisTimesScalar.hpp.

template<typename EvalT , typename Traits >
bool panzer::Integrator_DivBasisTimesScalar< EvalT, Traits >::use_shared_memory
private

If set to true, device shared memory will be used.

Definition at line 355 of file Panzer_Integrator_DivBasisTimesScalar.hpp.


The documentation for this class was generated from the following files:
