Implementation of NOX::Abstract::MultiVector for Thyra multi-vectors. More...

#include <NOX_Thyra_MultiVector.H>

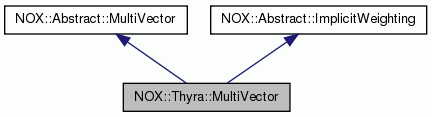

Inheritance diagram for NOX::Thyra::MultiVector:

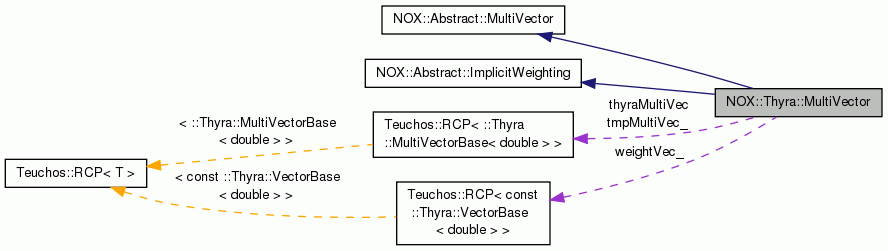

Collaboration diagram for NOX::Thyra::MultiVector:

Public Member Functions
	MultiVector (const Teuchos::RCP< ::Thyra::MultiVectorBase< double > > &source)
	Constructor that creates a VIEW of the Thyra multivector.

	MultiVector (const ::Thyra::MultiVectorBase< double > &source)
	Construct from a given Thyra multivector.

	MultiVector (const NOX::Thyra::MultiVector &source, NOX::CopyType type=NOX::DeepCopy)
	Copy constructor.

	~MultiVector ()
	Destruct MultiVector.

virtual NOX::size_type	length () const
	Return the length of multi-vector.

virtual int	numVectors () const
	Return the number of vectors in the multi-vector.

virtual void	print (std::ostream &stream) const
	Print the vector. This is meant for debugging purposes only.

void	setWeightVector (const Teuchos::RCP< const ::Thyra::VectorBase< double > > &weightVec)
	Set the weighting vector used for inner products and norms.

bool	hasWeightVector () const

Teuchos::RCP< const ::Thyra::VectorBase< double > >	getWeightVector () const
	Returns a weighting vector if one was set, otherwise throws.


virtual Teuchos::RCP < ::Thyra::MultiVectorBase < double > >	getThyraMultiVector ()
	Get RCP to underlying Thyra vector.

virtual Teuchos::RCP< const ::Thyra::MultiVectorBase < double > >	getThyraMultiVector () const
	Get const RCP to underlying Thyra vector.


virtual NOX::Abstract::MultiVector &	init (double value)
	Initialize every element of this multi-vector with `gamma`.

virtual NOX::Abstract::MultiVector &	random (bool useSeed=false, int seed=1)
	Initialize each element of this multi-vector with a random value.

virtual NOX::Abstract::MultiVector &	operator= (const NOX::Abstract::MultiVector &source)
	Copy source multi-vector `source` into this multi-vector.

NOX::Abstract::MultiVector &	operator= (const NOX::Thyra::MultiVector &source)

virtual NOX::Abstract::MultiVector &	setBlock (const NOX::Abstract::MultiVector &source, const std::vector< int > &index)
	Copy the vectors in `source` to a set of vectors in `this`. The `index.size()` vectors in `source` are copied to a subset of vectors in `this` indicated by the indices given in `index`.

virtual NOX::Abstract::MultiVector &	augment (const NOX::Abstract::MultiVector &source)
	Append the vectors in `source` to `*this`.


virtual NOX::Abstract::Vector &	operator[] (int i)
	Return a reference to the i-th column of the multivector as an abstract vector.

virtual const NOX::Abstract::Vector &	operator[] (int i) const
	Return a const reference to the i-th column of the multivector as an abstract vector.


virtual NOX::Abstract::MultiVector &	scale (double gamma)
	Scale each element of this multivector by `gamma`.

virtual NOX::Abstract::MultiVector &	update (double alpha, const NOX::Abstract::MultiVector &a, double gamma=0.0)
	Compute x = (alpha * a) + (gamma * x) where `a` is a multi-vector and `x` = `*this`.

virtual NOX::Abstract::MultiVector &	update (double alpha, const NOX::Abstract::MultiVector &a, double beta, const NOX::Abstract::MultiVector &b, double gamma=0.0)
	Compute x = (alpha * a) + (beta * b) + (gamma * x) where `a` and `b` are multi-vectors and `x` = `*this`.

virtual NOX::Abstract::MultiVector &	update (Teuchos::ETransp transb, double alpha, const NOX::Abstract::MultiVector &a, const NOX::Abstract::MultiVector::DenseMatrix &b, double gamma=0.0)
	Compute x = (alpha * a * b) + (gamma * x) where `a` is a multivector, `b` is a dense matrix, `x` = `*this`, and op(b) = b if transb = Teuchos::NO_TRANS and op(b) is b transpose if transb = Teuchos::TRANS.


virtual Teuchos::RCP < NOX::Abstract::MultiVector >	clone (CopyType type=DeepCopy) const
	Create a new Vector of the same underlying type by cloning "this", and return a pointer to the new vector. More...

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	clone (int numvecs) const
	Creates a new multi-vector with `numvecs` columns.

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	subCopy (const std::vector< int > &index) const
	Creates a new multi-vector with `index.size()` columns whose columns are copies of the columns of `*this` given by `index`.

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	subView (const std::vector< int > &index) const
	Creates a new multi-vector with `ndex.size()` columns that shares the columns of `*this` given by `index`.


virtual void	norm (std::vector< double > &result, NOX::Abstract::Vector::NormType type=NOX::Abstract::Vector::TwoNorm) const
	Norm.


virtual void	multiply (double alpha, const NOX::Abstract::MultiVector &y, NOX::Abstract::MultiVector::DenseMatrix &b) const
	Computes the matrix-matrix product $\alpha * y^T * (*this)$ .


bool	getImplicitWeighting () const
	Return true if implicit weighting is currently enabled. More...

void	setImplicitWeighting (bool do_implicit_weighting)
	Set to true to enable implicit weighting, false disables. More...

Public Member Functions inherited from NOX::Abstract::MultiVector
	MultiVector ()
	Default constructor. Does nothing.

Protected Member Functions
bool	isContiguous (const std::vector< int > &index) const
	Check whether an index array is contiguous.

Protected Attributes
Teuchos::RCP < ::Thyra::MultiVectorBase < double > >	thyraMultiVec
	Pointer to petra vector owned by this object.

std::vector< Teuchos::RCP < NOX::Thyra::Vector > >	noxThyraVectors
	NOX::Thyra::Vector's for each column of the multivector. More...

Teuchos::RCP< const ::Thyra::VectorBase< double > >	weightVec_
	Thyra vector used for weighting inner product and norms.

Teuchos::RCP < ::Thyra::MultiVectorBase < double > >	tmpMultiVec_
	Thyra vector used for weighting inner product and norms.

bool	do_implicit_weighting_
	True if implicit weighting is enabled (i.e. a nonnull wieghtVec_)

Additional Inherited Members
Public Types inherited from NOX::Abstract::MultiVector
typedef Teuchos::SerialDenseMatrix < int, double >	DenseMatrix
	Typename of dense matrices.

Detailed Description

Implementation of NOX::Abstract::MultiVector for Thyra multi-vectors.

Member Function Documentation

Teuchos::RCP< NOX::Abstract::MultiVector > NOX::Thyra::MultiVector::clone ( CopyType type = DeepCopy ) const

virtual

Create a new Vector of the same underlying type by cloning "this", and return a pointer to the new vector.

If type is NOX::DeepCopy, then we need to create an exact replica of "this". Otherwise, if type is NOX::ShapeCopy, we need only replicate the shape of "this". Note that there is no assumption that a vector created by ShapeCopy is initialized to zeros.

Returns: Pointer to newly created vector or NULL if clone is not supported.

Implements NOX::Abstract::MultiVector.

References Teuchos::rcp().

bool NOX::Thyra::MultiVector::getImplicitWeighting ( ) const

virtual

Return true if implicit weighting is currently enabled.

CAUTION: This is a power user feature and should only be used in concert with specialized NOX::Abstract::Vector implementations.

Implements NOX::Abstract::ImplicitWeighting.

void NOX::Thyra::MultiVector::setImplicitWeighting ( bool do_implicit_weighting )

virtual

Set to true to enable implicit weighting, false disables.

CAUTION: This is a power user feature and should only be used in concert with specialized NOX::Abstract::Vector implementations.

Implements NOX::Abstract::ImplicitWeighting.

Referenced by NOX::Thyra::Vector::createMultiVector().

Member Data Documentation

std::vector< Teuchos::RCP<NOX::Thyra::Vector> > NOX::Thyra::MultiVector::noxThyraVectors

mutableprotected

NOX::Thyra::Vector's for each column of the multivector.

Each Thyra_Vector in the NOX::Thyra::Vector has a view into a column of the multivector and get filled in as needed by operator[].

The documentation for this class was generated from the following files:

NOX_Thyra_MultiVector.H
NOX_Thyra_MultiVector.C
