Abstract interface for the constraint portion of a constrained nonlinear system for constraints that support computing a solution component derivative as a multi-vector. More...

#include <LOCA_MultiContinuation_ConstraintInterfaceMVDX.H>

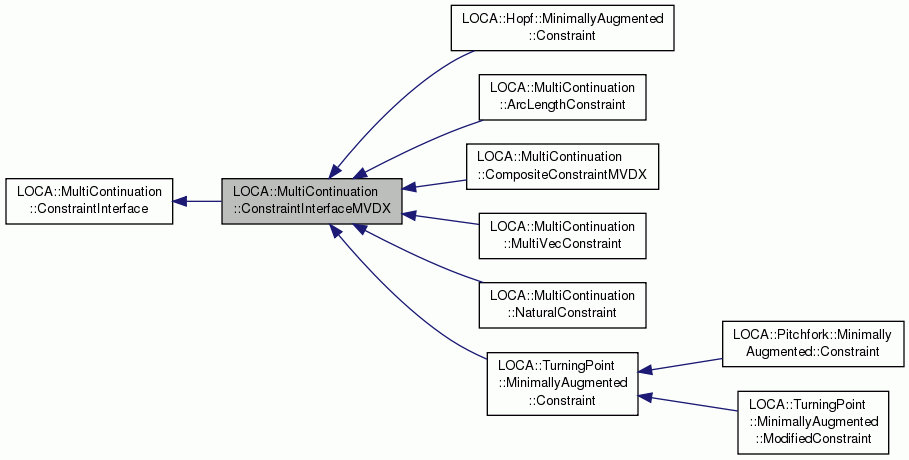

Inheritance diagram for LOCA::MultiContinuation::ConstraintInterfaceMVDX:

[legend]

Collaboration diagram for LOCA::MultiContinuation::ConstraintInterfaceMVDX:

[legend]

Public Member Functions
	ConstraintInterfaceMVDX ()
	Constructor.

virtual	~ConstraintInterfaceMVDX ()
	Destructor.

virtual const NOX::Abstract::MultiVector *	getDX () const =0
	Return solution component of constraint derivatives. More...

virtual NOX::Abstract::Group::ReturnType	multiplyDX (double alpha, const NOX::Abstract::MultiVector &input_x, NOX::Abstract::MultiVector::DenseMatrix &result_p) const
	Compute result_p = alpha * dg/dx * input_x. More...

virtual NOX::Abstract::Group::ReturnType	addDX (Teuchos::ETransp transb, double alpha, const NOX::Abstract::MultiVector::DenseMatrix &b, double beta, NOX::Abstract::MultiVector &result_x) const
	Compute result_x = alpha * dg/dx^T * op(b) + beta * result_x. More...

Public Member Functions inherited from LOCA::MultiContinuation::ConstraintInterface
	ConstraintInterface ()
	Constructor.

virtual	~ConstraintInterface ()
	Destructor.

virtual void	copy (const ConstraintInterface &source)=0
	Copy.

virtual Teuchos::RCP < LOCA::MultiContinuation::ConstraintInterface >	clone (NOX::CopyType type=NOX::DeepCopy) const =0
	Cloning function.

virtual int	numConstraints () const =0
	Return number of constraints.

virtual void	setX (const NOX::Abstract::Vector &x)=0
	Set the solution vector to x.

virtual void	setParam (int paramID, double val)=0
	Sets parameter indexed by paramID.

virtual void	setParams (const std::vector< int > &paramIDs, const NOX::Abstract::MultiVector::DenseMatrix &vals)=0
	Sets parameters indexed by paramIDs.

virtual NOX::Abstract::Group::ReturnType	computeConstraints ()=0
	Compute constraint residuals.

virtual NOX::Abstract::Group::ReturnType	computeDX ()=0
	Compute derivative of constraints w.r.t. solution vector x.

virtual NOX::Abstract::Group::ReturnType	computeDP (const std::vector< int > &paramIDs, NOX::Abstract::MultiVector::DenseMatrix &dgdp, bool isValidG)=0
	Compute derivative of constraints w.r.t. supplied parameters. More...

virtual bool	isConstraints () const =0
	Return `true` if constraint residuals are valid.

virtual bool	isDX () const =0
	Return `true` if derivative of constraint w.r.t. x is valid.

virtual const NOX::Abstract::MultiVector::DenseMatrix &	getConstraints () const =0
	Return constraint residuals.

virtual bool	isDXZero () const =0
	Return `true` if solution component of constraint derivatives is zero.

virtual void	preProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus)
	Perform any preprocessing before a continuation step starts. More...

virtual void	postProcessContinuationStep (LOCA::Abstract::Iterator::StepStatus)
	Perform any postprocessing after a continuation step finishes. More...

Detailed Description

Abstract interface for the constraint portion of a constrained nonlinear system for constraints that support computing a solution component derivative as a multi-vector.

This class extends the LOCA::MultiContinuation::ConstraintInterface to support constraints that support computing the entire derivative with respect to the solution components (x) and storing the resulting derivative as a multivector. This interface adds one additional method, getConstraintDerivativesX(), that returns this derivative. Additionally, it implements the applyConstraintDerivativesX() methods using standard multi-vector operations.

Member Function Documentation

NOX::Abstract::Group::ReturnType LOCA::MultiContinuation::ConstraintInterfaceMVDX::addDX	(	Teuchos::ETransp	transb,
		double	alpha,
		const NOX::Abstract::MultiVector::DenseMatrix &	b,
		double	beta,
		NOX::Abstract::MultiVector &	result_x
	)		const

virtual

Compute result_x = alpha * dg/dx^T * op(b) + beta * result_x.

This method is implemented using getConstraintDerivativesX() and the NOX::Abstract::MultiVector::update() method.

Implements LOCA::MultiContinuation::ConstraintInterface.

Reimplemented in LOCA::MultiContinuation::CompositeConstraintMVDX.

References NOX::Abstract::Group::Ok, NOX::Abstract::MultiVector::scale(), and NOX::Abstract::MultiVector::update().

Referenced by LOCA::MultiContinuation::CompositeConstraintMVDX::addDX().

virtual const NOX::Abstract::MultiVector* LOCA::MultiContinuation::ConstraintInterfaceMVDX::getDX ( ) const

pure virtual

Return solution component of constraint derivatives.

May return NULL if constraint derivative is zero

Implemented in LOCA::TurningPoint::MinimallyAugmented::Constraint, LOCA::Hopf::MinimallyAugmented::Constraint, LOCA::Pitchfork::MinimallyAugmented::Constraint, LOCA::MultiContinuation::ArcLengthConstraint, LOCA::MultiContinuation::NaturalConstraint, LOCA::MultiContinuation::MultiVecConstraint, and LOCA::MultiContinuation::CompositeConstraintMVDX.

Referenced by LOCA::BorderedSolver::Bordering::applyInverseTranspose(), LOCA::MultiContinuation::ConstrainedGroup::fillB(), LOCA::MultiContinuation::ConstrainedGroup::fillC(), multiplyDX(), and LOCA::BorderedSolver::Nested::setMatrixBlocks().

NOX::Abstract::Group::ReturnType LOCA::MultiContinuation::ConstraintInterfaceMVDX::multiplyDX	(	double	alpha,
		const NOX::Abstract::MultiVector &	input_x,
		NOX::Abstract::MultiVector::DenseMatrix &	result_p
	)		const

virtual

Compute result_p = alpha * dg/dx * input_x.

This method is implemented using getConstraintDerivativesX() and the NOX::Abstract::MultiVector::multiply() method.

Implements LOCA::MultiContinuation::ConstraintInterface.

Reimplemented in LOCA::MultiContinuation::CompositeConstraintMVDX.

References getDX(), LOCA::MultiContinuation::ConstraintInterface::isDXZero(), NOX::Abstract::MultiVector::multiply(), NOX::Abstract::Group::Ok, and Teuchos::SerialDenseMatrix< OrdinalType, ScalarType >::putScalar().

Referenced by LOCA::MultiContinuation::CompositeConstraintMVDX::multiplyDX().

The documentation for this class was generated from the following files:

LOCA_MultiContinuation_ConstraintInterfaceMVDX.H
LOCA_MultiContinuation_ConstraintInterfaceMVDX.C
