Multi-vector class to hold solution vectors, Newton vectors, etc.for the Moore-Spence Hopf eqautions. More...

#include <LOCA_Hopf_MooreSpence_ExtendedMultiVector.H>

Inheritance diagram for LOCA::Hopf::MooreSpence::ExtendedMultiVector:

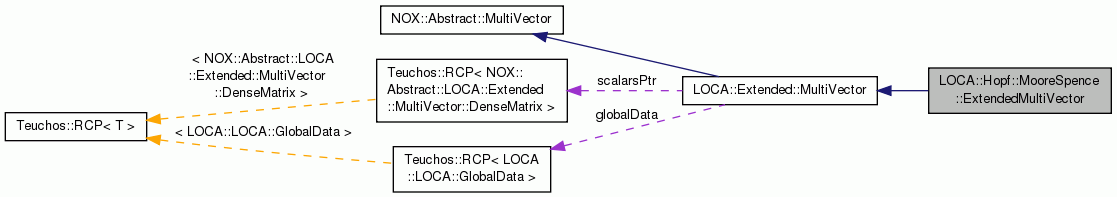

Collaboration diagram for LOCA::Hopf::MooreSpence::ExtendedMultiVector:

Public Member Functions
	ExtendedMultiVector (const Teuchos::RCP< LOCA::GlobalData > &global_data, const NOX::Abstract::Vector &cloneVec, int nColumns)
	Constructor. More...

	ExtendedMultiVector (const Teuchos::RCP< LOCA::GlobalData > &global_data, const NOX::Abstract::MultiVector &xVec, const NOX::Abstract::MultiVector &realEigenVec, const NOX::Abstract::MultiVector &imagEigenVec, const NOX::Abstract::MultiVector::DenseMatrix &freqs, const NOX::Abstract::MultiVector::DenseMatrix &bifParams)
	Constructor.

	ExtendedMultiVector (const ExtendedMultiVector &source, NOX::CopyType type=NOX::DeepCopy)
	Copy constructor.

	ExtendedMultiVector (const ExtendedMultiVector &source, int nColumns)
	Copy constructor that creates a new multivector with nColumns columns.

	ExtendedMultiVector (const ExtendedMultiVector &source, const std::vector< int > &index, bool view)
	Copy constructor that creates a sub copy or view of the given multivector.

virtual	~ExtendedMultiVector ()
	Destructor.

virtual ExtendedMultiVector &	operator= (const ExtendedMultiVector &y)
	Assignment operator.

virtual LOCA::Extended::MultiVector &	operator= (const LOCA::Extended::MultiVector &y)
	Assignment operator.

virtual NOX::Abstract::MultiVector &	operator= (const NOX::Abstract::MultiVector &y)
	Assignment operator.

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	clone (NOX::CopyType type=NOX::DeepCopy) const
	Create a new multi-vector of the same underlying type by cloning "this", and return a pointer to the new vector.

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	clone (int numvecs) const
	Creates a new multi-vector with `numvecs` columns.

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	subCopy (const std::vector< int > &index) const
	Creates a new multi-vector with `index.size()` columns whose columns are copies of the columns of `*this` given by `index`.

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	subView (const std::vector< int > &index) const
	Creates a new multi-vector with `index.size()` columns that shares the columns of `*this` given by `index`.

virtual Teuchos::RCP< const NOX::Abstract::MultiVector >	getXMultiVec () const
	Returns the solution vector component of extended multivector.

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	getXMultiVec ()
	Returns the solution vector component of extended multivector.

virtual Teuchos::RCP< const NOX::Abstract::MultiVector >	getRealEigenMultiVec () const
	Returns the real part of the eigenvector component of extended multivector.

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	getRealEigenMultiVec ()
	Returns the real part of the eigenvector component of extended multivector.

virtual Teuchos::RCP< const NOX::Abstract::MultiVector >	getImagEigenMultiVec () const
	Returns the imaginary part of the eigenvector component of extended multivector.

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	getImagEigenMultiVec ()
	Returns the imaginary part of the eigenvector component of extended multivector.

virtual Teuchos::RCP< const NOX::Abstract::MultiVector::DenseMatrix >	getFrequencies () const
	Returns frequency component of extended multi vector.

virtual Teuchos::RCP < NOX::Abstract::MultiVector::DenseMatrix >	getFrequencies ()
	Returns frequency component of extended multi vector.

virtual Teuchos::RCP< const NOX::Abstract::MultiVector::DenseMatrix >	getBifParams () const
	Returns bifurcation parameter component of extended multi vector.

virtual Teuchos::RCP < NOX::Abstract::MultiVector::DenseMatrix >	getBifParams ()
	Returns bifurcation parameter component of extended multi vector.

virtual Teuchos::RCP < LOCA::Hopf::MooreSpence::ExtendedVector >	getColumn (int i)
	Returns ith column as an extended vector.

virtual Teuchos::RCP< const LOCA::Hopf::MooreSpence::ExtendedVector >	getColumn (int i) const
	Returns ith column as an extended vector.

Public Member Functions inherited from LOCA::Extended::MultiVector
	MultiVector (const MultiVector &source, NOX::CopyType type=NOX::DeepCopy)
	Copy constructor.

	MultiVector (const MultiVector &source, int nColumns)
	Copy constructor that creates a new multivector with nColumns columns.

	MultiVector (const MultiVector &source, const std::vector< int > &index, bool view)
	Copy constructor that creates a sub copy or view of the given multivector.

virtual	~MultiVector ()
	Vector destructor.

virtual NOX::Abstract::MultiVector &	init (double gamma)
	Initialize every element of this multi-vector with `gamma`.

virtual NOX::Abstract::MultiVector &	random (bool useSeed=false, int seed=1)
	Initialize each element of this multi-vector with a random value.

virtual NOX::Abstract::MultiVector &	setBlock (const NOX::Abstract::MultiVector &source, const std::vector< int > &index)
	Copy the vectors in `source` to a set of vectors in `this`. The `index.size()` vectors in `source` are copied to a subset of vectors in `this` indicated by the indices given in `index`.

virtual NOX::Abstract::MultiVector &	setBlock (const MultiVector &source, const std::vector< int > &index)

virtual NOX::Abstract::MultiVector &	augment (const NOX::Abstract::MultiVector &source)
	Append the vectors in `source` to `*this`.

virtual NOX::Abstract::MultiVector &	augment (const MultiVector &source)

virtual NOX::Abstract::Vector &	operator[] (int i)
	Return a reference to the i-th column of the multivector as an abstract vector.

virtual const NOX::Abstract::Vector &	operator[] (int i) const
	Return a const reference to the i-th column of the multivector as an abstract vector.

virtual NOX::Abstract::MultiVector &	scale (double gamma)
	Scale each element of this multivector by `gamma`.

virtual NOX::Abstract::MultiVector &	update (double alpha, const NOX::Abstract::MultiVector &a, double gamma=0.0)
	Compute x = (alpha * a) + (gamma * x) where `a` is a multi-vector and `x` = `*this`.

virtual NOX::Abstract::MultiVector &	update (double alpha, const MultiVector &a, double gamma=0.0)

virtual NOX::Abstract::MultiVector &	update (double alpha, const NOX::Abstract::MultiVector &a, double beta, const NOX::Abstract::MultiVector &b, double gamma=0.0)
	Compute x = (alpha * a) + (beta * b) + (gamma * x) where `a` and `b` are multi-vectors and `x` = `*this`.

virtual NOX::Abstract::MultiVector &	update (double alpha, const MultiVector &a, double beta, const MultiVector &b, double gamma=0.0)

virtual NOX::Abstract::MultiVector &	update (Teuchos::ETransp transb, double alpha, const NOX::Abstract::MultiVector &a, const NOX::Abstract::MultiVector::DenseMatrix &b, double gamma=0.0)
	Compute x = (alpha * a * b) + (gamma * x) where `a` is a multivector, `b` is a dense matrix, `x` = `*this`, and op(b) = b if transb = Teuchos::NO_TRANS and op(b) is b transpose if transb = Teuchos::TRANS.

virtual NOX::Abstract::MultiVector &	update (Teuchos::ETransp transb, double alpha, const MultiVector &a, const NOX::Abstract::MultiVector::DenseMatrix &b, double gamma=0.0)

virtual void	norm (std::vector< double > &result, NOX::Abstract::Vector::NormType type=NOX::Abstract::Vector::TwoNorm) const
	Norm.

virtual void	multiply (double alpha, const NOX::Abstract::MultiVector &y, NOX::Abstract::MultiVector::DenseMatrix &b) const
	Computes the matrix-matrix product $\alpha * y^T * (*this)$ .

virtual void	multiply (double alpha, const MultiVector &y, NOX::Abstract::MultiVector::DenseMatrix &b) const

virtual NOX::size_type	length () const
	Return the length of multi-vector.

virtual int	numVectors () const
	Return the number of vectors in the multi-vector.

virtual void	print (std::ostream &stream) const
	Print the vector. This is meant for debugging purposes only.

virtual Teuchos::RCP< const NOX::Abstract::MultiVector >	getMultiVector (int i) const
	Returns const ref-count pointer to the ith multi-vector.

virtual Teuchos::RCP < NOX::Abstract::MultiVector >	getMultiVector (int i)
	Returns ref-count pointer to the ith multi-vector.

virtual Teuchos::RCP< const NOX::Abstract::MultiVector::DenseMatrix >	getScalars () const
	Returns const ref-count pointer to scalar matrix.

virtual Teuchos::RCP < NOX::Abstract::MultiVector::DenseMatrix >	getScalars ()
	Returns ref-count pointer to scalar matrix.

virtual Teuchos::RCP< const NOX::Abstract::MultiVector::DenseMatrix >	getScalarRows (int num_rows, int row) const
	Returns const ref-count pointer to `num_rows` rows of scalar matrix starting at row `row`.

virtual Teuchos::RCP < NOX::Abstract::MultiVector::DenseMatrix >	getScalarRows (int num_rows, int row)
	Returns ref-count pointer to `num_rows` rows of scalar matrix starting at row `row`.

virtual const double &	getScalar (int i, int j) const
	Returns const reference to the scalar for row i, column j.

virtual double &	getScalar (int i, int j)
	Returns reference to the scalar for row i, column j.

virtual Teuchos::RCP < LOCA::Extended::Vector >	getVector (int i)
	Return a ref-count pointer to the i-th column of the multivector as an abstract vector.

virtual Teuchos::RCP< const LOCA::Extended::Vector >	getVector (int i) const
	Return a const ref-count pointer to the i-th column of the multivector as an abstract vector.

virtual int	getNumScalarRows () const
	Returns number of scalars rows.

virtual int	getNumMultiVectors () const
	Returns number of multi vectors.

Public Member Functions inherited from NOX::Abstract::MultiVector
	MultiVector ()
	Default constructor. Does nothing.

Protected Member Functions
	ExtendedMultiVector (const Teuchos::RCP< LOCA::GlobalData > &global_data, int nColumns)
	Constructor. More...

virtual Teuchos::RCP < LOCA::Extended::Vector >	generateVector (int nVecs, int nScalarRows) const
	Generate a derived extended vector. More...

Protected Member Functions inherited from LOCA::Extended::MultiVector
	MultiVector (const Teuchos::RCP< LOCA::GlobalData > &global_data, int nColumns, int nVectorRows, int nScalarRows)
	Constructor that creates an empty multivector to be filled in later.

void	setMultiVectorPtr (int i, Teuchos::RCP< NOX::Abstract::MultiVector > v)
	Sets the pointer to the ith multivector.

void	checkDimensions (const std::string &callingFunction, const LOCA::Extended::MultiVector &a) const
	Checks multi-vec argument dimensions are consistent.

void	checkIndex (const std::string &callingFunction, int i) const
	Checks validity of column index.

void	checkVectorRowIndex (const std::string &callingFunction, int i) const
	Checks validity of vector row index.

void	checkIndex (const std::string &callingFunction, int i, int j) const
	Checks validity of column and row index for scalars.

bool	isContiguous (const std::vector< int > &index) const
	Checks is index array is contiguous.

Friends
class	ExtendedVector
	Declare LOCA::Hopf::MooreSpence::ExtendedVector as a friend class so it can call protected methods.

Additional Inherited Members
Public Types inherited from NOX::Abstract::MultiVector
typedef Teuchos::SerialDenseMatrix < int, double >	DenseMatrix
	Typename of dense matrices.

Protected Attributes inherited from LOCA::Extended::MultiVector
Teuchos::RCP< LOCA::GlobalData >	globalData
	Global data.

int	numColumns
	Number of columns in each multivec and number of scalar vector columns.

int	numMultiVecRows
	Number of multivec block rows.

int	numScalarRows
	Number of scalar rows.

std::vector< Teuchos::RCP < NOX::Abstract::MultiVector > >	multiVectorPtrs
	Array of multi-vector pointers, one for each block ROW.

Teuchos::RCP < NOX::Abstract::MultiVector::DenseMatrix >	scalarsPtr
	Dense matrix of scalars.

std::vector< Teuchos::RCP < LOCA::Extended::Vector > >	extendedVectorPtrs
	Pointers to each column as a LOCA::Extended::Vector.

bool	isView
	Flag indicating whether this vector is a view.

Detailed Description

Multi-vector class to hold solution vectors, Newton vectors, etc.for the Moore-Spence Hopf eqautions.

This class uses the LOCA::Extended::MultiVector implementation to store the solution, real and imaginary eigenvector, frequency and parameter components of the Hopf multi vector and merely provides an interface for naming which components of the multivector these quantities correspond to.

Constructor & Destructor Documentation

LOCA::Hopf::MooreSpence::ExtendedMultiVector::ExtendedMultiVector	(	const Teuchos::RCP< LOCA::GlobalData > &	global_data,
		const NOX::Abstract::Vector &	cloneVec,
		int	nColumns
	)
