Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node > Class Template Referenceabstract

Sparse matrix whose entries are small dense square blocks, all of the same dimensions. More...

#include <Tpetra_BlockCrsMatrix_decl.hpp>

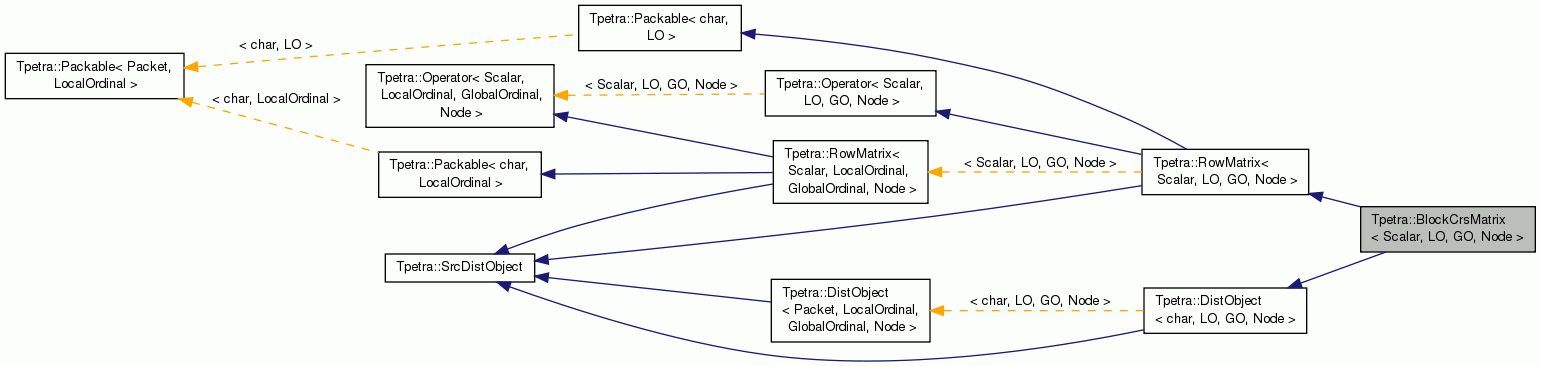

Inheritance diagram for Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >:
Inheritance graph
[legend]

Public Types

Public typedefs
using scalar_type = Scalar
 The type of entries in the matrix (that is, of each entry in each block). More...

using impl_scalar_type = typename BMV::impl_scalar_type
 The implementation type of entries in the matrix. More...

typedef LO local_ordinal_type
 The type of local indices. More...

typedef GO global_ordinal_type
 The type of global indices. More...

typedef Node node_type
 The Node type. More...

typedef Node::device_type device_type
 The Kokkos::Device specialization that this class uses. More...

typedef
device_type::execution_space
execution_space
 The Kokkos execution space that this class uses. More...

typedef device_type::memory_space memory_space
 The Kokkos memory space that this class uses. More...

typedef ::Tpetra::Map< LO, GO,
node_type
map_type
 The implementation of Map that this class uses. More...

typedef ::Tpetra::MultiVector
< Scalar, LO, GO, node_type
mv_type
 The implementation of MultiVector that this class uses. More...

typedef ::Tpetra::CrsGraph< LO,
GO, node_type
crs_graph_type
 The implementation of CrsGraph that this class uses. More...

typedef Kokkos::View
< impl_scalar_type
**, Impl::BlockCrsMatrixLittleBlockArrayLayout,
device_type,
Kokkos::MemoryTraits
< Kokkos::Unmanaged > >
little_block_type
 The type used to access nonconst matrix blocks. More...

typedef
little_block_type::HostMirror
little_block_host_type

typedef Kokkos::View< const
impl_scalar_type
**, Impl::BlockCrsMatrixLittleBlockArrayLayout,
device_type,
Kokkos::MemoryTraits
< Kokkos::Unmanaged > >
const_little_block_type
 The type used to access const matrix blocks. More...

typedef BMV::little_vec_type little_vec_type
 The type used to access nonconst vector blocks. More...

typedef BMV::little_host_vec_type little_host_vec_type

typedef BMV::const_little_vec_type const_little_vec_type
 The type used to access const vector blocks. More...

typedef
BMV::const_little_host_vec_type
const_host_little_vec_type

using row_matrix_type = RowMatrix< Scalar, LO, GO, node_type >

using local_inds_device_view_type = typename row_matrix_type::local_inds_device_view_type

using local_inds_host_view_type = typename row_matrix_type::local_inds_host_view_type

using nonconst_local_inds_host_view_type = typename row_matrix_type::nonconst_local_inds_host_view_type

using global_inds_device_view_type = typename row_matrix_type::global_inds_device_view_type

using global_inds_host_view_type = typename row_matrix_type::global_inds_host_view_type

using nonconst_global_inds_host_view_type = typename row_matrix_type::nonconst_global_inds_host_view_type

using values_device_view_type = typename row_matrix_type::values_device_view_type

using values_host_view_type = typename row_matrix_type::values_host_view_type

using nonconst_values_host_view_type = typename row_matrix_type::nonconst_values_host_view_type

using local_graph_device_type = typename crs_graph_type::local_graph_device_type

using local_matrix_device_type = KokkosSparse::Experimental::BsrMatrix< impl_scalar_type, local_ordinal_type, device_type, void, typename local_graph_device_type::size_type >

using local_matrix_host_type = typename local_matrix_device_type::HostMirror

Typedefs
using mag_type = typename Kokkos::ArithTraits< Scalar >::mag_type
 Type of a norm result. More...

typedef Kokkos::View< const
size_t *, typename
Node::device_type >
::const_type
row_ptrs_device_view_type

typedef
row_ptrs_device_view_type::HostMirror::const_type
row_ptrs_host_view_type


Public Member Functions

impl_scalar_type_dualview::t_host getValuesHostNonConst () const
 Get the host or device View of the matrix's values (val_). More...

impl_scalar_type_dualview::t_host::const_type getValuesHost (const LO &lclRow) const
 Get a const Host view of the locally owned values. More...

impl_scalar_type_dualview::t_dev::const_type getValuesDevice (const LO &lclRow) const
 Get a const Device view of the locally owned values. More...

impl_scalar_type_dualview::t_host getValuesHostNonConst (const LO &lclRow)
 Get a non-const Host view of the locally owned values. More...

impl_scalar_type_dualview::t_dev getValuesDeviceNonConst (const LO &lclRow)
 Get a non-const Device view of the locally owned values. More...

virtual Teuchos::RCP< const
Teuchos::Comm< int > >
getComm () const override
 The communicator over which this matrix is distributed. More...

virtual global_size_t getGlobalNumCols () const override
 The global number of columns of this matrix. More...

virtual size_t getLocalNumCols () const override
 The number of columns needed to apply the forward operator on this node. More...

virtual GO getIndexBase () const override
 The index base for global indices in this matrix. More...

virtual global_size_t getGlobalNumEntries () const override
 The global number of stored (structurally nonzero) entries. More...

virtual size_t getLocalNumEntries () const override
 The local number of stored (structurally nonzero) entries. More...

virtual size_t getNumEntriesInGlobalRow (GO globalRow) const override
 The current number of entries on the calling process in the specified global row. More...

virtual size_t getGlobalMaxNumRowEntries () const override
 The maximum number of entries in any row over all processes in the matrix's communicator. More...

virtual bool hasColMap () const override
 Whether this matrix has a well-defined column Map. More...

virtual bool isLocallyIndexed () const override
 Whether matrix indices are locally indexed. More...

virtual bool isGloballyIndexed () const override
 Whether matrix indices are globally indexed. More...

virtual bool isFillComplete () const override
 Whether fillComplete() has been called. More...

virtual bool supportsRowViews () const override
 Whether this object implements getLocalRowView() and getGlobalRowView(). More...

Constructors and destructor
 BlockCrsMatrix ()
 Default constructor: Makes an empty block matrix. More...

 BlockCrsMatrix (const crs_graph_type &graph, const LO blockSize)
 Constructor that takes a graph and a block size. More...

 BlockCrsMatrix (const crs_graph_type &graph, const typename local_matrix_device_type::values_type &values, const LO blockSize)

 BlockCrsMatrix (const crs_graph_type &graph, const map_type &domainPointMap, const map_type &rangePointMap, const LO blockSize)
 Constructor that takes a graph, domain and range point Maps, and a block size. More...

virtual ~BlockCrsMatrix ()
 Destructor (declared virtual for memory safety). More...

Implementation of Tpetra::Operator
Teuchos::RCP< const map_typegetDomainMap () const override
 Get the (point) domain Map of this matrix. More...

Teuchos::RCP< const map_typegetRangeMap () const override
 Get the (point) range Map of this matrix. More...

Teuchos::RCP< const map_typegetRowMap () const override
 get the (mesh) map for the rows of this block matrix. More...

Teuchos::RCP< const map_typegetColMap () const override
 get the (mesh) map for the columns of this block matrix. More...

global_size_t getGlobalNumRows () const override
 get the global number of block rows More...

size_t getLocalNumRows () const override
 get the local number of block rows More...

size_t getLocalMaxNumRowEntries () const override
 Maximum number of entries in any row of the matrix, on this process. More...

void apply (const mv_type &X, mv_type &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const override
 For this matrix A, compute Y := beta * Y + alpha * Op(A) * X. More...

bool hasTransposeApply () const override
 Whether it is valid to apply the transpose or conjugate transpose of this matrix. More...

void setAllToScalar (const Scalar &alpha)
 Set all matrix entries equal to alpha. More...

Implementation of Teuchos::Describable
std::string description () const override
 One-line description of this object. More...

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const override
 Print a description of this object to the given output stream. More...

Extraction Methods
virtual void getGlobalRowCopy (GO GlobalRow, nonconst_global_inds_host_view_type &Indices, nonconst_values_host_view_type &Values, size_t &NumEntries) const override
 Get a copy of the given global row's entries. More...

virtual void getGlobalRowView (GO GlobalRow, global_inds_host_view_type &indices, values_host_view_type &values) const override
 Get a constant, nonpersisting, globally indexed view of the given row of the matrix. More...

virtual void getLocalDiagCopy (::Tpetra::Vector< Scalar, LO, GO, Node > &diag) const override
 Get a copy of the diagonal entries, distributed by the row Map. More...

Mathematical methods
virtual void leftScale (const ::Tpetra::Vector< Scalar, LO, GO, Node > &x) override
 Scale the RowMatrix on the left with the given Vector x. More...

virtual void rightScale (const ::Tpetra::Vector< Scalar, LO, GO, Node > &x) override
 Scale the RowMatrix on the right with the given Vector x. More...

virtual
typename::Tpetra::RowMatrix
< Scalar, LO, GO, Node >
::mag_type
getFrobeniusNorm () const override
 The Frobenius norm of the matrix. More...

Extraction Methods
virtual void getGlobalRowCopy (GOGlobalRow, nonconst_global_inds_host_view_type &Indices, nonconst_values_host_view_type &Values, size_t &NumEntries) const =0
 Get a copy of the given global row's entries. More...

virtual void getLocalRowCopy (LOLocalRow, nonconst_local_inds_host_view_type &Indices, nonconst_values_host_view_type &Values, size_t &NumEntries) const =0
 Get a copy of the given local row's entries. More...

virtual void getGlobalRowView (GOGlobalRow, global_inds_host_view_type &indices, values_host_view_type &values) const =0
 Get a constant, nonpersisting, globally indexed view of the given row of the matrix. More...

virtual void getLocalRowView (LOLocalRow, local_inds_host_view_type &indices, values_host_view_type &values) const =0
 Get a constant, nonpersisting, locally indexed view of the given row of the matrix. More...

virtual void getLocalDiagCopy (Vector< Scalar, LO, GO, Node > &diag) const =0
 Get a copy of the diagonal entries, distributed by the row Map. More...

Mathematical methods
virtual void leftScale (const Vector< Scalar, LO, GO, Node > &x)=0
 Scale the matrix on the left with the given Vector. More...

virtual void rightScale (const Vector< Scalar, LO, GO, Node > &x)=0
 Scale the matrix on the right with the given Vector. More...

virtual Teuchos::RCP
< RowMatrix< Scalar, LO, GO,
Node > >
add (const Scalar &alpha, const RowMatrix< Scalar, LO, GO, Node > &A, const Scalar &beta, const Teuchos::RCP< const Map< LO, GO, Node > > &domainMap=Teuchos::null, const Teuchos::RCP< const Map< LO, GO, Node > > &rangeMap=Teuchos::null, const Teuchos::RCP< Teuchos::ParameterList > &params=Teuchos::null) const
 Return a new RowMatrix which is the result of beta*this + alpha*A. More...

Implementation of Packable interface
virtual void pack (const Teuchos::ArrayView< const LO > &exportLIDs, Teuchos::Array< char > &exports, const Teuchos::ArrayView< size_t > &numPacketsPerLID, size_t &constantNumPackets) const
 Pack this object's data for an Import or Export. More...

Pure virtual functions to be overridden by subclasses.
virtual void apply (const MultiVector< Scalar, LO, GO, Node > &X, MultiVector< Scalar, LO, GO, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), Scalar beta=Teuchos::ScalarTraits< Scalar >::zero()) const =0
 Computes the operator-multivector application. More...

virtual bool hasDiagonal () const
 Whether this operator can return its diagonal. More...

Public methods for redistributing data
void doImport (const SrcDistObject &source, const Import< LO, GO, Node > &importer, const CombineMode CM, const bool restrictedMode=false)
 Import data into this object using an Import object ("forward mode"). More...

void doImport (const SrcDistObject &source, const Export< LO, GO, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)
 Import data into this object using an Export object ("reverse mode"). More...

void doExport (const SrcDistObject &source, const Export< LO, GO, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)
 Export data into this object using an Export object ("forward mode"). More...

void doExport (const SrcDistObject &source, const Import< LO, GO, Node > &importer, const CombineMode CM, const bool restrictedMode=false)
 Export data into this object using an Import object ("reverse mode"). More...

void beginImport (const SrcDistObject &source, const Import< LO, GO, Node > &importer, const CombineMode CM, const bool restrictedMode=false)

void beginImport (const SrcDistObject &source, const Export< LO, GO, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)

void beginExport (const SrcDistObject &source, const Export< LO, GO, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)

void beginExport (const SrcDistObject &source, const Import< LO, GO, Node > &importer, const CombineMode CM, const bool restrictedMode=false)

void endImport (const SrcDistObject &source, const Import< LO, GO, Node > &importer, const CombineMode CM, const bool restrictedMode=false)

void endImport (const SrcDistObject &source, const Export< LO, GO, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)

void endExport (const SrcDistObject &source, const Export< LO, GO, Node > &exporter, const CombineMode CM, const bool restrictedMode=false)

void endExport (const SrcDistObject &source, const Import< LO, GO, Node > &importer, const CombineMode CM, const bool restrictedMode=false)

bool transferArrived () const
 Whether the data from an import/export operation has arrived, and is ready for the unpack and combine step. More...

Attribute accessor methods
bool isDistributed () const
 Whether this is a globally distributed object. More...

virtual Teuchos::RCP< const
map_type
getMap () const
 The Map describing the parallel distribution of this object. More...

I/O methods
void print (std::ostream &os) const
 Print this object to the given output stream. More...

Methods for use only by experts
virtual void removeEmptyProcessesInPlace (const Teuchos::RCP< const map_type > &newMap)
 Remove processes which contain no entries in this object's Map. More...


Protected Types

typedef char packet_type
 Implementation detail; tells. More...


Protected Member Functions

virtual size_t constantNumberOfPackets () const
 Whether the implementation's instance promises always to have a constant number of packets per LID (local index), and if so, how many packets per LID there are. More...

virtual void doTransfer (const SrcDistObject &src, const ::Tpetra::Details::Transfer< local_ordinal_type, global_ordinal_type, node_type > &transfer, const char modeString[], const ReverseOption revOp, const CombineMode CM, const bool restrictedMode)
 Redistribute data across (MPI) processes. More...

virtual bool reallocArraysForNumPacketsPerLid (const size_t numExportLIDs, const size_t numImportLIDs)
 Reallocate numExportPacketsPerLID_ and/or numImportPacketsPerLID_, if necessary. More...

void beginTransfer (const SrcDistObject &src, const ::Tpetra::Details::Transfer< local_ordinal_type, global_ordinal_type, node_type > &transfer, const char modeString[], const ReverseOption revOp, const CombineMode CM, const bool restrictedMode)
 Implementation detail of doTransfer. More...


Block operations

virtual LO getBlockSize () const override
 The number of degrees of freedom per mesh point. More...

virtual Teuchos::RCP< const
::Tpetra::RowGraph< LO, GO,
Node > >
getGraph () const override
 Get the (mesh) graph. More...

const crs_graph_typegetCrsGraph () const

void applyBlock (const BlockMultiVector< Scalar, LO, GO, Node > &X, BlockMultiVector< Scalar, LO, GO, Node > &Y, Teuchos::ETransp mode=Teuchos::NO_TRANS, const Scalar alpha=Teuchos::ScalarTraits< Scalar >::one(), const Scalar beta=Teuchos::ScalarTraits< Scalar >::zero())
 Version of apply() that takes BlockMultiVector input and output. More...

void importAndFillComplete (Teuchos::RCP< BlockCrsMatrix< Scalar, LO, GO, Node > > &destMatrix, const Import< LO, GO, Node > &importer) const
 Import from this to the given destination matrix, and make the result fill complete. More...

void exportAndFillComplete (Teuchos::RCP< BlockCrsMatrix< Scalar, LO, GO, Node > > &destMatrix, const Export< LO, GO, Node > &exporter) const
 Import from this to the given destination matrix, and make the result fill complete. More...

LO replaceLocalValues (const LO localRowInd, const LO colInds[], const Scalar vals[], const LO numColInds) const
 Replace values at the given (mesh, i.e., block) column indices, in the given (mesh, i.e., block) row. More...

LO sumIntoLocalValues (const LO localRowInd, const LO colInds[], const Scalar vals[], const LO numColInds) const
 Sum into values at the given (mesh, i.e., block) column indices, in the given (mesh, i.e., block) row. More...

void getLocalRowView (LO LocalRow, local_inds_host_view_type &indices, values_host_view_type &values) const override
 Get a view of the (mesh, i.e., block) row, using local (mesh, i.e., block) indices. More...

void getLocalRowViewNonConst (LO LocalRow, local_inds_host_view_type &indices, nonconst_values_host_view_type &values) const

virtual void getLocalRowCopy (LO LocalRow, nonconst_local_inds_host_view_type &Indices, nonconst_values_host_view_type &Values, size_t &NumEntries) const override
 Not implemented. More...

little_block_type getLocalBlockDeviceNonConst (const LO localRowInd, const LO localColInd) const

little_block_host_type getLocalBlockHostNonConst (const LO localRowInd, const LO localColInd) const

LO getLocalRowOffsets (const LO localRowInd, ptrdiff_t offsets[], const LO colInds[], const LO numColInds) const
 Get relative offsets corresponding to the given rows, given by local row index. More...

LO replaceLocalValuesByOffsets (const LO localRowInd, const ptrdiff_t offsets[], const Scalar vals[], const LO numOffsets) const
 Like replaceLocalValues, but avoids computing row offsets. More...

LO absMaxLocalValuesByOffsets (const LO localRowInd, const ptrdiff_t offsets[], const Scalar vals[], const LO numOffsets) const

LO sumIntoLocalValuesByOffsets (const LO localRowInd, const ptrdiff_t offsets[], const Scalar vals[], const LO numOffsets) const
 Like sumIntoLocalValues, but avoids computing row offsets. More...

size_t getNumEntriesInLocalRow (const LO localRowInd) const override
 Return the number of entries in the given row on the calling process. More...

local_matrix_device_type getLocalMatrixDevice () const

bool localError () const
 Whether this object had an error on the calling process. More...

std::string errorMessages () const
 The current stream of error messages. More...

void getLocalDiagOffsets (const Kokkos::View< size_t *, device_type, Kokkos::MemoryUnmanaged > &offsets) const
 Get offsets of the diagonal entries in the matrix. More...

void getLocalDiagCopy (const Kokkos::View< impl_scalar_type ***, device_type, Kokkos::MemoryUnmanaged > &diag, const Kokkos::View< const size_t *, device_type, Kokkos::MemoryUnmanaged > &offsets) const
 Variant of getLocalDiagCopy() that uses precomputed offsets and puts diagonal blocks in a 3-D Kokkos::View. More...

LO absMaxLocalValues (const LO localRowInd, const LO colInds[], const Scalar vals[], const LO numColInds) const
 Variant of getLocalDiagCopy() that uses precomputed offsets and puts diagonal blocks in a 3-D Kokkos::View. More...


Implementation of Tpetra::DistObject.

The methods here implement Tpetra::DistObject. They let BlockMultiVector participate in Import and Export operations. Users don't have to worry about these methods.

using buffer_device_type = typename DistObject< Scalar, LO, GO, Node >::buffer_device_type
 Kokkos::Device specialization for communication buffers. More...

virtual bool checkSizes (const ::Tpetra::SrcDistObject &source) override

virtual void copyAndPermute (const SrcDistObject &sourceObj, const size_t numSameIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteToLIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteFromLIDs, const CombineMode CM) override

virtual void packAndPrepare (const SrcDistObject &sourceObj, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &exportLIDs, Kokkos::DualView< packet_type *, buffer_device_type > &exports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, size_t &constantNumPackets) override

virtual void unpackAndCombine (const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &importLIDs, Kokkos::DualView< packet_type *, buffer_device_type > imports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, const size_t constantNumPackets, const CombineMode combineMode) override


Methods implemented by subclasses and used by doTransfer().

The doTransfer() method uses the subclass' implementations of these methods to implement data transfer. Subclasses of DistObject must implement these methods. This is an instance of the Template Method Pattern. ("Template" here doesn't mean "C++ template"; it means "pattern with holes that are filled in by the subclass' method implementations.")

virtual bool checkSizes (const SrcDistObject &source)=0
 Compare the source and target (this) objects for compatibility. More...

virtual void copyAndPermute (const SrcDistObject &source, const size_t numSameIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteToLIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteFromLIDs, const CombineMode CM)
 Perform copies and permutations that are local to the calling (MPI) process. More...

virtual void copyAndPermute (const SrcDistObject &source, const size_t numSameIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteToLIDs, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &permuteFromLIDs, const CombineMode CM, const execution_space &space)
 Same as copyAndPermute, but do operations in space. More...

virtual void packAndPrepare (const SrcDistObject &source, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &exportLIDs, Kokkos::DualView< packet_type *, buffer_device_type > &exports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, size_t &constantNumPackets)
 Pack data and metadata for communication (sends). More...

virtual void packAndPrepare (const SrcDistObject &source, const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &exportLIDs, Kokkos::DualView< packet_type *, buffer_device_type > &exports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, size_t &constantNumPackets, const execution_space &space)
 Same as packAndPrepare, but in an execution space instance. More...

virtual void unpackAndCombine (const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &importLIDs, Kokkos::DualView< packet_type *, buffer_device_type > imports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, const size_t constantNumPackets, const CombineMode combineMode)
 Perform any unpacking and combining after communication. More...

virtual void unpackAndCombine (const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &importLIDs, Kokkos::DualView< packet_type *, buffer_device_type > imports, Kokkos::DualView< size_t *, buffer_device_type > numPacketsPerLID, const size_t constantNumPackets, const CombineMode combineMode, const execution_space &space)

std::unique_ptr< std::string > createPrefix (const char className[], const char methodName[]) const

virtual bool reallocImportsIfNeeded (const size_t newSize, const bool verbose, const std::string *prefix, const bool remoteLIDsContiguous=false, const CombineMode CM=INSERT)
 Reallocate imports_ if needed. More...

Teuchos::RCP< const map_typemap_
 The Map over which this object is distributed. More...

Kokkos::DualView< packet_type
*, buffer_device_type
imports_
 Buffer into which packed data are imported (received from other processes). More...

Kokkos::DualView< size_t
*, buffer_device_type
numImportPacketsPerLID_
 Number of packets to receive for each receive operation. More...

Kokkos::DualView< packet_type
*, buffer_device_type
exports_
 Buffer from which packed data are exported (sent to other processes). More...

Kokkos::DualView< size_t
*, buffer_device_type
numExportPacketsPerLID_
 Number of packets to send for each send operation. More...


Detailed Description

template<class Scalar, class LO, class GO, class Node>
class Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >

Sparse matrix whose entries are small dense square blocks, all of the same dimensions.

Template Parameters
ScalarThe type of the numerical entries of the matrix. (You can use real-valued or complex-valued types here, unlike in Epetra, where the scalar type is always double.)
LOThe type of local indices. See the documentation of the first template parameter of Map for requirements.
GOThe type of global indices. See the documentation of the second template parameter of Map for requirements.
NodeThe Kokkos Node type. See the documentation of the third template parameter of Map for requirements.

Please read the documentation of BlockMultiVector first.

This class implements a sparse matrix whose entries are small dense square blocks, all of the same dimensions. The intended application is to store the discretization of a partial differential equation with multiple degrees of freedom per mesh point, where all mesh points have the same number of degrees of freedom. This class stores values associated with the degrees of freedom of a single mesh point contiguously, in a getBlockSize() by getBlockSize() block, in row-major format. The matrix's graph represents the mesh points, with one entry per mesh point. This saves storage over using a CrsMatrix, which requires one graph entry per matrix entry.

This class requires a fill-complete Tpetra::CrsGraph for construction. Thus, it has a row Map and a column Map already. As a result, BlockCrsMatrix only needs to provide access using local indices. Access using local indices is faster anyway, since conversion from global to local indices requires a hash table lookup per index. Users are responsible for converting from global to local indices if necessary. Please be aware that the row Map and column Map may differ, so you may not use local row and column indices interchangeably.

We reserve the right to change the block layout in the future. Best practice is to use this class' little_block_type and const_little_block_type typedefs to access blocks, since their types offer access to entries in a layout-independent way. These two typedefs are both Kokkos::View specializations.

Here is an example of how to fill into this object using raw-pointer views.

int err = 0;
// At least one entry, so &offsets[0] always makes sense.
Teuchos::Array<ptrdiff_t> offsets (1);
for (LO localRowInd = 0; localRowInd < localNumRows; ++localRowInd) {
// Get a view of the current row.
// You may modify the values, but not the column indices.
const LO* localColInds;
Scalar* vals;
LO numEntries;
err = A.getLocalRowView (localRowInd, localColInds, vals, numEntries);
if (err != 0) {
break;
}
// Modify the entries in the current row.
for (LO k = 0; k < numEntries; ++k) {
Scalar* const curBlock = vals[blockSize * blockSize * k];
// Blocks are stored in row-major format.
for (LO j = 0; j < blockSize; ++j) {
for (LO i = 0; i < blockSize; ++i) {
const Scalar curVal = &curBlock[i + j * blockSize];
// Some function f of the current value and mesh point
curBlock[i + j * blockSize] = f (curVal, localColInds[k], ...);
}
}
}
}

Definition at line 134 of file Tpetra_BlockCrsMatrix_decl.hpp.

Member Typedef Documentation

template<class Scalar, class LO, class GO, class Node>
typedef char Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::packet_type
protected

Implementation detail; tells.

Definition at line 145 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
using Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::scalar_type = Scalar

The type of entries in the matrix (that is, of each entry in each block).

Definition at line 152 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
using Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::impl_scalar_type = typename BMV::impl_scalar_type

The implementation type of entries in the matrix.

Letting scalar_type and impl_scalar_type differ helps this class work correctly for Scalar types like std::complex<T>, which lack the necessary CUDA device macros and volatile overloads to work correctly with Kokkos.

Definition at line 160 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
typedef LO Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::local_ordinal_type

The type of local indices.

Definition at line 163 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
typedef GO Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::global_ordinal_type

The type of global indices.

Definition at line 165 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
typedef Node Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::node_type

The Node type.

Prefer device_type, execution_space, and memory_space (see below), which relate directly to Kokkos.

Definition at line 170 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
typedef Node::device_type Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::device_type

The Kokkos::Device specialization that this class uses.

Definition at line 173 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
typedef device_type::execution_space Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::execution_space

The Kokkos execution space that this class uses.

Definition at line 175 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
typedef device_type::memory_space Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::memory_space

The Kokkos memory space that this class uses.

Definition at line 177 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
typedef ::Tpetra::Map<LO, GO, node_type> Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::map_type

The implementation of Map that this class uses.

Definition at line 180 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
typedef ::Tpetra::MultiVector<Scalar, LO, GO, node_type> Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::mv_type

The implementation of MultiVector that this class uses.

Definition at line 182 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
typedef ::Tpetra::CrsGraph<LO, GO, node_type> Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::crs_graph_type

The implementation of CrsGraph that this class uses.

Definition at line 184 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
typedef Kokkos::View<impl_scalar_type**, Impl::BlockCrsMatrixLittleBlockArrayLayout, device_type, Kokkos::MemoryTraits<Kokkos::Unmanaged> > Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::little_block_type

The type used to access nonconst matrix blocks.

Definition at line 191 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
typedef Kokkos::View<const impl_scalar_type**, Impl::BlockCrsMatrixLittleBlockArrayLayout, device_type, Kokkos::MemoryTraits<Kokkos::Unmanaged> > Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::const_little_block_type

The type used to access const matrix blocks.

Definition at line 199 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
typedef BMV::little_vec_type Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::little_vec_type

The type used to access nonconst vector blocks.

Definition at line 201 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
typedef BMV::const_little_vec_type Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::const_little_vec_type

The type used to access const vector blocks.

Definition at line 205 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::buffer_device_type
protected

Kokkos::Device specialization for communication buffers.

See #1088 for why this is not just device_type::device_type.

Definition at line 755 of file Tpetra_BlockCrsMatrix_decl.hpp.

using Tpetra::RowMatrix< Scalar, LO , GO , Node >::mag_type = typename Kokkos::ArithTraits<Scalar>::mag_type
inherited

Type of a norm result.

This is usually the same as the type of the magnitude (absolute value) of Scalar, but may differ for certain Scalar types.

Definition at line 85 of file Tpetra_RowMatrix_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar , class LO , class GO , class Node >
Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::BlockCrsMatrix ( )

Default constructor: Makes an empty block matrix.

Definition at line 153 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO, class GO , class Node >
Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::BlockCrsMatrix ( const crs_graph_type graph,
const LO  blockSize
)

Constructor that takes a graph and a block size.

The graph represents the mesh. This constructor computes the point Maps corresponding to the given graph's domain and range Maps. If you already have those point Maps, it is better to call the four-argument constructor.

Parameters
graph[in] A fill-complete graph.
blockSize[in] Number of degrees of freedom per mesh point.

KK : additional check is needed that graph is fill complete.

Definition at line 168 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO, class GO , class Node >
Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::BlockCrsMatrix ( const crs_graph_type graph,
const typename local_matrix_device_type::values_type &  values,
const LO  blockSize
)

KK : additional check is needed that graph is fill complete.

Definition at line 229 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO, class GO , class Node >
Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::BlockCrsMatrix ( const crs_graph_type graph,
const map_type domainPointMap,
const map_type rangePointMap,
const LO  blockSize
)

Constructor that takes a graph, domain and range point Maps, and a block size.

The graph represents the mesh. This constructor uses the given domain and range point Maps, rather than computing them. The given point Maps must be the same as the above two-argument constructor would have computed.

Definition at line 290 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO, class Node>
virtual Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::~BlockCrsMatrix ( )
inlinevirtual

Destructor (declared virtual for memory safety).

Definition at line 314 of file Tpetra_BlockCrsMatrix_decl.hpp.

Member Function Documentation

template<class Scalar , class LO , class GO , class Node >
Teuchos::RCP< const typename BlockCrsMatrix< Scalar, LO, GO, Node >::map_type > Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getDomainMap ( ) const
overridevirtual

Get the (point) domain Map of this matrix.

Implements Tpetra::Operator< Scalar, LO, GO, Node >.

Definition at line 352 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
Teuchos::RCP< const typename BlockCrsMatrix< Scalar, LO, GO, Node >::map_type > Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getRangeMap ( ) const
overridevirtual

Get the (point) range Map of this matrix.

Implements Tpetra::Operator< Scalar, LO, GO, Node >.

Definition at line 361 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
Teuchos::RCP< const typename BlockCrsMatrix< Scalar, LO, GO, Node >::map_type > Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getRowMap ( ) const
overridevirtual

get the (mesh) map for the rows of this block matrix.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 370 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
Teuchos::RCP< const typename BlockCrsMatrix< Scalar, LO, GO, Node >::map_type > Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getColMap ( ) const
overridevirtual

get the (mesh) map for the columns of this block matrix.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 378 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
global_size_t Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getGlobalNumRows ( ) const
overridevirtual

get the global number of block rows

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 386 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
size_t Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getLocalNumRows ( ) const
overridevirtual

get the local number of block rows

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 394 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
size_t Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getLocalMaxNumRowEntries ( ) const
overridevirtual

Maximum number of entries in any row of the matrix, on this process.

Precondition
Subclasses reserve the right to impose preconditions on the matrix's state.

This method only uses the matrix's graph. Explicitly stored zeros count as "entries."

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 402 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO , class GO , class Node >
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::apply ( const mv_type X,
mv_type Y,
Teuchos::ETransp  mode = Teuchos::NO_TRANS,
Scalar  alpha = Teuchos::ScalarTraits<Scalar>::one (),
Scalar  beta = Teuchos::ScalarTraits<Scalar>::zero ()
) const
override

For this matrix A, compute Y := beta * Y + alpha * Op(A) * X.

Op(A) is A if mode is Teuchos::NO_TRANS, the transpose of A if mode is Teuchos::TRANS, and the conjugate transpose of A if mode is Teuchos::CONJ_TRANS.

If alpha is zero, ignore X's entries on input; if beta is zero, ignore Y's entries on input. This follows the BLAS convention, and only matters if X resp. Y have Inf or NaN entries.

Definition at line 410 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO, class Node>
bool Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::hasTransposeApply ( ) const
inlineoverridevirtual

Whether it is valid to apply the transpose or conjugate transpose of this matrix.

Reimplemented from Tpetra::Operator< Scalar, LO, GO, Node >.

Definition at line 358 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO , class GO , class Node >
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::setAllToScalar ( const Scalar &  alpha)

Set all matrix entries equal to alpha.

Definition at line 564 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
std::string Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::description ( ) const
overridevirtual

One-line description of this object.

Reimplemented from Tpetra::DistObject< char, LO, GO, Node >.

Definition at line 2537 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::describe ( Teuchos::FancyOStream &  out,
const Teuchos::EVerbosityLevel  verbLevel
) const
overridevirtual

Print a description of this object to the given output stream.

Parameters
out[out] Output stream to which to print. Valid values include Teuchos::VERB_DEFAULT, Teuchos::VERB_NONE, Teuchos::VERB_LOW, Teuchos::VERB_MEDIUM, Teuchos::VERB_HIGH, and Teuchos::VERB_EXTREME.
verbLevel[in] Verbosity level at which to print.
Warning
If verbLevel is Teuchos::VERB_EXTREME, this method has collective semantics over the matrix's communicator.

The following pseudocode shows how to wrap your std::ostream object in a Teuchos::FancyOStream, and pass it into this method:

// ...
std::ostream& yourObject = ...;
Teuchos::RCP<Teuchos::FancyOStream> wrappedStream =
Teuchos::getFancyOStream (Teuchos::rcpFromRef (yourObject));
const Teuchos::EVerbosityLevel verbLevel = ...;
A.describe (*wrappedStream, verbLevel);

Reimplemented from Tpetra::DistObject< char, LO, GO, Node >.

Definition at line 2561 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO, class Node>
virtual LO Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getBlockSize ( ) const
inlineoverridevirtual

The number of degrees of freedom per mesh point.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 406 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar , class LO , class GO , class Node >
Teuchos::RCP< const ::Tpetra::RowGraph< LO, GO, Node > > Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getGraph ( ) const
overridevirtual

Get the (mesh) graph.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 3032 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO, class Node>
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::applyBlock ( const BlockMultiVector< Scalar, LO, GO, Node > &  X,
BlockMultiVector< Scalar, LO, GO, Node > &  Y,
Teuchos::ETransp  mode = Teuchos::NO_TRANS,
const Scalar  alpha = Teuchos::ScalarTraits<Scalar>::one (),
const Scalar  beta = Teuchos::ScalarTraits<Scalar>::zero ()
)

Version of apply() that takes BlockMultiVector input and output.

This method is deliberately not marked const, because it may do lazy initialization of temporary internal block multivectors.

Definition at line 480 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO, class Node>
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::importAndFillComplete ( Teuchos::RCP< BlockCrsMatrix< Scalar, LO, GO, Node > > &  destMatrix,
const Import< LO, GO, Node > &  importer
) const

Import from this to the given destination matrix, and make the result fill complete.

Definition at line 508 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO, class Node>
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::exportAndFillComplete ( Teuchos::RCP< BlockCrsMatrix< Scalar, LO, GO, Node > > &  destMatrix,
const Export< LO, GO, Node > &  exporter
) const

Import from this to the given destination matrix, and make the result fill complete.

Definition at line 536 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO , class Node >
LO Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::replaceLocalValues ( const LO  localRowInd,
const LO  colInds[],
const Scalar  vals[],
const LO  numColInds
) const

Replace values at the given (mesh, i.e., block) column indices, in the given (mesh, i.e., block) row.

Parameters
localRowInd[in] Local mesh (i.e., block) index of the row in which to replace.
colInds[in] Local mesh (i.e., block) column ind{ex,ices} at which to replace values. colInds[k] is the local column index whose new values start at vals[getBlockSize() * getBlockSize() * k], and colInds has length at least numColInds. This method will only access the first numColInds entries of colInds.
vals[in] The new values to use at the given column indices. Values for each block are stored contiguously, in row major layout, with no padding between rows or between blocks. Thus, if b = getBlockSize(), then vals[k*b*b] .. vals[(k+1)*b*b-1] are the values to use for block colInds[k].
numColInds[in] The number of entries of colInds.
Returns
The number of valid entries of colInds. colInds[k] is valid if and only if it is a valid local mesh (i.e., block) column index. This method succeeded if and only if the return value equals the input argument numColInds.

Definition at line 573 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO , class Node >
LO Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::sumIntoLocalValues ( const LO  localRowInd,
const LO  colInds[],
const Scalar  vals[],
const LO  numColInds
) const

Sum into values at the given (mesh, i.e., block) column indices, in the given (mesh, i.e., block) row.

Parameters
localRowInd[in] Local mesh (i.e., block) index of the row in which to sum.
colInds[in] Local mesh (i.e., block) column ind{ex,ices} at which to sum. colInds[k] is the local column index whose new values start at vals[getBlockSize() * getBlockSize() * k], and colInds has length at least numColInds. This method will only access the first numColInds entries of colInds.
vals[in] The new values to sum in at the given column indices. Values for each block are stored contiguously, in row major layout, with no padding between rows or between blocks. Thus, if b = getBlockSize(), then vals[k*b*b] .. vals[(k+1)*b*b-1] are the values to use for block colInds[k].
numColInds[in] The number of entries of colInds.
Returns
The number of valid entries of colInds. colInds[k] is valid if and only if it is a valid local mesh (i.e., block) column index. This method succeeded if and only if the return value equals the input argument numColInds.

Definition at line 648 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO, class GO , class Node >
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getLocalRowView ( LO  LocalRow,
local_inds_host_view_type &  indices,
values_host_view_type &  values
) const
override

Get a view of the (mesh, i.e., block) row, using local (mesh, i.e., block) indices.

This matrix has a graph, and we assume that the graph is fill complete on input to the matrix's constructor. Thus, the matrix has a column Map, and it stores column indices as local indices. This means you can view the column indices as local indices directly. However, you may not view them as global indices directly, since the column indices are not stored as global indices in the graph.

Parameters
localRowInd[in] Local (mesh, i.e., block) row index.
colInds[out] If localRowInd is valid on the calling process, then on output, this is a pointer to the local (mesh, i.e., block) column indices in the given (mesh, i.e., block) row. If localRowInd is not valid, then this is undefined. (Please check the return value of this method.)
vals[out] If localRowInd is valid on the calling process, then on output, this is a pointer to the row's values. If localRowInd is not valid, then this is undefined. (Please check the return value of this method.)
numInds[in] The number of (mesh, i.e., block) indices in colInds on output.
Returns
0 if localRowInd is valid, else Teuchos::OrdinalTraits<LO>::invalid(). KK: this is inherited from row matrix interface and it returns const this cannot replace the deprecated pointer interface we need nonconst version of this code

Definition at line 2932 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO, class GO , class Node >
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getLocalRowViewNonConst ( LO  LocalRow,
local_inds_host_view_type &  indices,
nonconst_values_host_view_type &  values
) const

KK: this is new addition to replace getLocalRowVie with pointers and arrayviews we can change name if it is not prefrred

Definition at line 2952 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO, class GO , class Node >
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getLocalRowCopy ( LO  LocalRow,
nonconst_local_inds_host_view_type &  Indices,
nonconst_values_host_view_type &  Values,
size_t &  NumEntries
) const
overridevirtual

Not implemented.

Definition at line 661 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO, class GO , class Node >
LO Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getLocalRowOffsets ( const LO  localRowInd,
ptrdiff_t  offsets[],
const LO  colInds[],
const LO  numColInds
) const

Get relative offsets corresponding to the given rows, given by local row index.

The point of this method is to precompute the results of searching for the offsets corresponding to the given column indices. You may then reuse these search results in replaceLocalValuesByOffsets or sumIntoLocalValuesByOffsets.

Offsets are block offsets; they are for column indices, not for values.

Parameters
localRowInd[in] Local index of the row.
offsets[out] On output: relative offsets corresponding to the given column indices. Must have at least numColInds entries.
colInds[in] The local column indices for which to compute offsets. Must have at least numColInds entries. This method will only read the first numColsInds entries.
numColInds[in] Number of entries in colInds to read.
Returns
The number of valid column indices in colInds. This method succeeded if and only if the return value equals the input argument numColInds.

Definition at line 686 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO , class Node >
LO Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::replaceLocalValuesByOffsets ( const LO  localRowInd,
const ptrdiff_t  offsets[],
const Scalar  vals[],
const LO  numOffsets
) const

Like replaceLocalValues, but avoids computing row offsets.

Returns
The number of valid column indices in colInds. This method succeeded if and only if the return value equals the input argument numColInds.

Definition at line 719 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO , class Node >
LO Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::sumIntoLocalValuesByOffsets ( const LO  localRowInd,
const ptrdiff_t  offsets[],
const Scalar  vals[],
const LO  numOffsets
) const

Like sumIntoLocalValues, but avoids computing row offsets.

Returns
The number of valid column indices in colInds. This method succeeded if and only if the return value equals the input argument numColInds.

Definition at line 794 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO, class GO , class Node >
size_t Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getNumEntriesInLocalRow ( const LO  localRowInd) const
overridevirtual

Return the number of entries in the given row on the calling process.

If the given local row index is invalid, this method (sensibly) returns zero, since the calling process trivially does not own any entries in that row.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 914 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
BlockCrsMatrix< Scalar, LO, GO, Node >::local_matrix_device_type Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getLocalMatrixDevice ( ) const

Get KokkosSparce::Experimental::BsrMatrix representation of this BlockCrsMatrix

Definition at line 927 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO, class Node>
bool Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::localError ( ) const
inline

Whether this object had an error on the calling process.

Import and Export operations using this object as the target of the Import or Export may incur local errors, if some process encounters an LID in its list which is not a valid mesh row local index on that process. In that case, we don't want to throw an exception, because not all processes may throw an exception; this can result in deadlock or put Tpetra in an incorrect state, due to lack of consistency across processes. Instead, we set a local error flag and ignore the incorrect data. When unpacking, we do the same with invalid column indices. If you want to check whether some process experienced an error, you must do a reduction or all-reduce over this flag. Every time you initiate a new Import or Export with this object as the target, we clear this flag. (Note to developers: we clear it at the beginning of checkSizes().)

Definition at line 645 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar, class LO, class GO, class Node>
std::string Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::errorMessages ( ) const
inline

The current stream of error messages.

This is only nonempty on the calling process if localError() returns true. In that case, it stores a stream of human-readable, endline-separated error messages encountered during an Import or Export cycle. Every time you initiate a new Import or Export with this object as the target, we clear this stream. (Note to developers: we clear it at the beginning of checkSizes().)

If you want to print this, you are responsible for ensuring that it is valid for the calling MPI process to print to whatever output stream you use. On some MPI implementations, you may need to send the string to Process 0 for printing.

Definition at line 663 of file Tpetra_BlockCrsMatrix_decl.hpp.

template<class Scalar , class LO , class GO , class Node >
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getLocalDiagOffsets ( const Kokkos::View< size_t *, device_type, Kokkos::MemoryUnmanaged > &  offsets) const

Get offsets of the diagonal entries in the matrix.

Warning
This method is only for expert users.
We make no promises about backwards compatibility for this method. It may disappear or change at any time.
This method must be called collectively. We reserve the right to do extra checking in a debug build that will require collectives.
Precondition
The matrix must be locally indexed (which means that it has a column Map).
All diagonal entries of the matrix's graph must be populated on this process. Results are undefined otherwise.
Postcondition
offsets.extent(0) == getLocalNumRows()

This method creates an array of offsets of the local diagonal entries in the matrix. This array is suitable for use in the two-argument version of getLocalDiagCopy(). However, its contents are not defined in any other context. For example, you should not rely on offsets(i) being the index of the diagonal entry in the views returned by getLocalRowView(). This may be the case, but it need not be. (For example, we may choose to optimize the lookups down to the optimized storage level, in which case the offsets will be computed with respect to the underlying storage format, rather than with respect to the views.)

If the matrix has a const ("static") graph, and if that graph is fill complete, then the offsets array remains valid through calls to fillComplete() and resumeFill(). "Invalidates" means that you must call this method again to recompute the offsets.

Definition at line 587 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getLocalDiagCopy ( const Kokkos::View< impl_scalar_type ***, device_type, Kokkos::MemoryUnmanaged > &  diag,
const Kokkos::View< const size_t *, device_type, Kokkos::MemoryUnmanaged > &  offsets
) const

Variant of getLocalDiagCopy() that uses precomputed offsets and puts diagonal blocks in a 3-D Kokkos::View.

Parameters
diag[out] On input: Must be preallocated, with dimensions at least (number of diagonal blocks on the calling process) x getBlockSize() x getBlockSize(). On output: the diagonal blocks. Leftmost index is "which block," then the row index within a block, then the column index within a block.

This method uses the offsets of the diagonal entries, as precomputed by getLocalDiagOffsets(), to speed up copying the diagonal of the matrix.

Definition at line 596 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO , class Node >
LO Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::absMaxLocalValues ( const LO  localRowInd,
const LO  colInds[],
const Scalar  vals[],
const LO  numColInds
) const
protected

Variant of getLocalDiagCopy() that uses precomputed offsets and puts diagonal blocks in a 3-D Kokkos::View.

Parameters
diag[out] On input: Must be preallocated, with dimensions at least (number of diagonal blocks on the calling process) x getBlockSize() x getBlockSize(). On output: the diagonal blocks. Leftmost index is "which block," then the row index within a block, then the column index within a block.

This method uses the offsets of the diagonal entries, as precomputed by getLocalDiagOffsets(), to speed up copying the diagonal of the matrix. Like sumIntoLocalValues, but for the ABSMAX combine mode.

Definition at line 633 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO, class Node>
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::copyAndPermute ( const SrcDistObject sourceObj,
const size_t  numSameIDs,
const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  permuteToLIDs,
const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  permuteFromLIDs,
const CombineMode  CM
)
overrideprotectedvirtual

< DistObject copyAndPermute has multiple overloads – use copyAndPermutes for anything we don't override

Check input valid

Definition at line 1302 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO, class Node>
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::packAndPrepare ( const SrcDistObject sourceObj,
const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  exportLIDs,
Kokkos::DualView< packet_type *, buffer_device_type > &  exports,
Kokkos::DualView< size_t *, buffer_device_type numPacketsPerLID,
size_t &  constantNumPackets
)
overrideprotectedvirtual

< DistObject overloads packAndPrepare. Explicitly use DistObject's packAndPrepare for anything we don't override

Check input valid

Definition at line 1930 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::unpackAndCombine ( const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  importLIDs,
Kokkos::DualView< packet_type *, buffer_device_type imports,
Kokkos::DualView< size_t *, buffer_device_type numPacketsPerLID,
const size_t  constantNumPackets,
const CombineMode  combineMode
)
overrideprotectedvirtual

< DistObject has overloaded unpackAndCombine, use the DistObject's implementation for anything we don't override.

Check input valid

Definition at line 2188 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
BlockCrsMatrix< Scalar, LO, GO, Node >::impl_scalar_type_dualview::t_host Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getValuesHostNonConst ( ) const

Get the host or device View of the matrix's values (val_).

Warning
This is for EXPERT USE ONLY. We make NO PROMISES OF BACKWARDS COMPATIBILITY. YOU HAVE BEEN WARNED. CAVEAT LECTOR!!!
Template Parameters
MemorySpaceMemory space for which to get the Kokkos::View.

This is not const, because we reserve the right to do lazy allocation on device / "fast" memory. Host / "slow" memory allocations generally are not lazy; that way, the host fill interface always works in a thread-parallel context without needing to synchronize on the allocation.

CT: While we reserved the "right" we ignored this and explicitly did const cast away Hence I made the non-templated functions [getValuesHost and getValuesDevice; see above] const. KK: This should be deprecated.

Definition at line 851 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO, class GO , class Node >
BlockCrsMatrix< Scalar, LO, GO, Node >::impl_scalar_type_dualview::t_host::const_type Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getValuesHost ( const LO &  lclRow) const

Get a const Host view of the locally owned values.

Definition at line 869 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO, class GO , class Node >
BlockCrsMatrix< Scalar, LO, GO, Node >::impl_scalar_type_dualview::t_dev::const_type Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getValuesDevice ( const LO &  lclRow) const

Get a const Device view of the locally owned values.

Definition at line 881 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO, class GO , class Node >
BlockCrsMatrix< Scalar, LO, GO, Node >::impl_scalar_type_dualview::t_host Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getValuesHostNonConst ( const LO &  lclRow)

Get a non-const Host view of the locally owned values.

Definition at line 892 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO, class GO , class Node >
BlockCrsMatrix< Scalar, LO, GO, Node >::impl_scalar_type_dualview::t_dev Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getValuesDeviceNonConst ( const LO &  lclRow)

Get a non-const Device view of the locally owned values.

Definition at line 903 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
Teuchos::RCP< const Teuchos::Comm< int > > Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getComm ( ) const
overridevirtual

The communicator over which this matrix is distributed.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 2797 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
global_size_t Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getGlobalNumCols ( ) const
overridevirtual

The global number of columns of this matrix.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 2806 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
size_t Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getLocalNumCols ( ) const
overridevirtual

The number of columns needed to apply the forward operator on this node.

This is the same as the number of elements listed in the column Map. It is not necessarily the same as the number of domain Map elements owned by the calling process.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 2815 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
GO Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getIndexBase ( ) const
overridevirtual

The index base for global indices in this matrix.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 2823 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
global_size_t Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getGlobalNumEntries ( ) const
overridevirtual

The global number of stored (structurally nonzero) entries.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 2831 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
size_t Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getLocalNumEntries ( ) const
overridevirtual

The local number of stored (structurally nonzero) entries.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 2839 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO, class Node >
size_t Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getNumEntriesInGlobalRow ( GO  globalRow) const
overridevirtual

The current number of entries on the calling process in the specified global row.

Note that if the row Map is overlapping, then the calling process might not necessarily store all the entries in the row. Some other process might have the rest of the entries.

Returns
Teuchos::OrdinalTraits<size_t>::invalid() if the specified global row does not belong to this graph, else the number of entries.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 2847 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
size_t Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getGlobalMaxNumRowEntries ( ) const
overridevirtual

The maximum number of entries in any row over all processes in the matrix's communicator.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 2856 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
bool Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::hasColMap ( ) const
overridevirtual

Whether this matrix has a well-defined column Map.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 2864 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
bool Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::isLocallyIndexed ( ) const
overridevirtual

Whether matrix indices are locally indexed.

A RowMatrix may store column indices either as global indices (of type GO), or as local indices (of type LO). In some cases (for example, if the column Map has not been computed), it is not possible to switch from global to local indices without extra work. Furthermore, some operations only work for one or the other case.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 2873 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
bool Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::isGloballyIndexed ( ) const
overridevirtual

Whether matrix indices are globally indexed.

A RowMatrix may store column indices either as global indices (of type GO), or as local indices (of type LO). In some cases (for example, if the column Map has not been computed), it is not possible to switch from global to local indices without extra work. Furthermore, some operations only work for one or the other case.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 2881 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
bool Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::isFillComplete ( ) const
overridevirtual

Whether fillComplete() has been called.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 2889 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
bool Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::supportsRowViews ( ) const
overridevirtual

Whether this object implements getLocalRowView() and getGlobalRowView().

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 2897 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO, class Node >
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getGlobalRowCopy ( GO  GlobalRow,
nonconst_global_inds_host_view_type &  Indices,
nonconst_values_host_view_type &  Values,
size_t &  NumEntries
) const
overridevirtual

Get a copy of the given global row's entries.

This method only gets the entries in the given row that are stored on the calling process. Note that if the matrix has an overlapping row Map, it is possible that the calling process does not store all the entries in that row.

Parameters
GlobalRow[in] Global index of the row.
Indices[out] Global indices of the columns corresponding to values.
Values[out] Matrix values.
NumEntries[out] Number of stored entries on the calling process; length of Indices and Values.

This method throws std::runtime_error if either Indices or Values is not large enough to hold the data associated with row GlobalRow. If GlobalRow does not belong to the calling process, then the method sets NumIndices to Teuchos::OrdinalTraits<size_t>::invalid(), and does not modify Indices or Values.

Definition at line 2905 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO, class Node >
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getGlobalRowView ( GO  GlobalRow,
global_inds_host_view_type &  indices,
values_host_view_type &  values
) const
overridevirtual

Get a constant, nonpersisting, globally indexed view of the given row of the matrix.

The returned views of the column indices and values are not guaranteed to persist beyond the lifetime of this. Furthermore, some RowMatrix implementations allow changing the values, or the indices and values. Any such changes invalidate the returned views.

This method only gets the entries in the given row that are stored on the calling process. Note that if the matrix has an overlapping row Map, it is possible that the calling process does not store all the entries in that row.

Precondition
isGloballyIndexed () && supportsRowViews ()
Postcondition
indices.size () == getNumEntriesInGlobalRow (GlobalRow)
Parameters
GlobalRow[in] Global index of the row.
Indices[out] Global indices of the columns corresponding to values.
Values[out] Matrix values.

If GlobalRow does not belong to this node, then indices is set to null.

Definition at line 2919 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO, class Node>
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getLocalDiagCopy ( ::Tpetra::Vector< Scalar, LO, GO, Node > &  diag) const
overridevirtual

Get a copy of the diagonal entries, distributed by the row Map.

On input, the Vector's Map must be the same as the row Map of the matrix. (That is, this->getRowMap ()->isSameAs (* (diag.getMap ())) == true.)

On return, the entries of diag are filled with the diagonal entries of the matrix stored on this process. Note that if the row Map is overlapping, multiple processes may own the same diagonal element. You may combine these overlapping diagonal elements by doing an Export from the row Map Vector to a range Map Vector.

Definition at line 2973 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO, class Node>
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::leftScale ( const ::Tpetra::Vector< Scalar, LO, GO, Node > &  x)
overridevirtual

Scale the RowMatrix on the left with the given Vector x.

On return, for all entries i,j in the matrix, $A(i,j) = x(i)*A(i,j)$.

Definition at line 3010 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar, class LO, class GO, class Node>
void Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::rightScale ( const ::Tpetra::Vector< Scalar, LO, GO, Node > &  x)
overridevirtual

Scale the RowMatrix on the right with the given Vector x.

On return, for all entries i,j in the matrix, $A(i,j) = x(j)*A(i,j)$.

Definition at line 3021 of file Tpetra_BlockCrsMatrix_def.hpp.

template<class Scalar , class LO , class GO , class Node >
typename::Tpetra::RowMatrix< Scalar, LO, GO, Node >::mag_type Tpetra::BlockCrsMatrix< Scalar, LO, GO, Node >::getFrobeniusNorm ( ) const
overridevirtual

The Frobenius norm of the matrix.

This method computes and returns the Frobenius norm of the matrix. The Frobenius norm $\|A\|_F$ for the matrix $A$ is defined as $\|A\|_F = \sqrt{ \sum_{i,j} |A(i,j)|^2 }$. It has the same value as the Euclidean norm of a vector made by stacking the columns of $A$.

Implements Tpetra::RowMatrix< Scalar, LO, GO, Node >.

Definition at line 3040 of file Tpetra_BlockCrsMatrix_def.hpp.

virtual void Tpetra::RowMatrix< Scalar, LO , GO , Node >::getGlobalRowCopy ( GO  GlobalRow,
nonconst_global_inds_host_view_type &  Indices,
nonconst_values_host_view_type &  Values,
size_t &  NumEntries
) const
pure virtualinherited

Get a copy of the given global row's entries.

This method only gets the entries in the given row that are stored on the calling process. Note that if the matrix has an overlapping row Map, it is possible that the calling process does not store all the entries in that row.

Parameters
GlobalRow[in] Global index of the row.
Indices[out] Global indices of the columns corresponding to values.
Values[out] Matrix values.
NumEntries[out] Number of stored entries on the calling process; length of Indices and Values.

This method throws std::runtime_error if either Indices or Values is not large enough to hold the data associated with row GlobalRow. If GlobalRow does not belong to the calling process, then the method sets NumIndices to Teuchos::OrdinalTraits<size_t>::invalid(), and does not modify Indices or Values.

virtual void Tpetra::RowMatrix< Scalar, LO , GO , Node >::getLocalRowCopy ( LO  LocalRow,
nonconst_local_inds_host_view_type &  Indices,
nonconst_values_host_view_type &  Values,
size_t &  NumEntries
) const
pure virtualinherited

Get a copy of the given local row's entries.

This method only gets the entries in the given row that are stored on the calling process. Note that if the matrix has an overlapping row Map, it is possible that the calling process does not store all the entries in that row.

Parameters
LocalRow[in] Local index of the row.
Indices[out] Local indices of the columns corresponding to values.
Values[out] Matrix values.
NumEntries[out] Number of stored entries on the calling process; length of Indices and Values.

This method throws std::runtime_error if either Indices or Values is not large enough to hold the data associated with row LocalRow. If LocalRow does not belong to the calling process, then the method sets NumIndices to Teuchos::OrdinalTraits<size_t>::invalid(), and does not modify Indices or Values.

virtual void Tpetra::RowMatrix< Scalar, LO , GO , Node >::getGlobalRowView ( GO  GlobalRow,
global_inds_host_view_type &  indices,
values_host_view_type &  values
) const
pure virtualinherited

Get a constant, nonpersisting, globally indexed view of the given row of the matrix.

The returned views of the column indices and values are not guaranteed to persist beyond the lifetime of this. Furthermore, some RowMatrix implementations allow changing the values, or the indices and values. Any such changes invalidate the returned views.

This method only gets the entries in the given row that are stored on the calling process. Note that if the matrix has an overlapping row Map, it is possible that the calling process does not store all the entries in that row.

Precondition
isGloballyIndexed () && supportsRowViews ()
Postcondition
indices.size () == getNumEntriesInGlobalRow (GlobalRow)
Parameters
GlobalRow[in] Global index of the row.
Indices[out] Global indices of the columns corresponding to values.
Values[out] Matrix values.

If GlobalRow does not belong to this node, then indices is set to null.

virtual void Tpetra::RowMatrix< Scalar, LO , GO , Node >::getLocalRowView ( LO  LocalRow,
local_inds_host_view_type &  indices,
values_host_view_type &  values
) const
pure virtualinherited

Get a constant, nonpersisting, locally indexed view of the given row of the matrix.

The returned views of the column indices and values are not guaranteed to persist beyond the lifetime of this. Furthermore, some RowMatrix implementations allow changing the values, or the indices and values. Any such changes invalidate the returned views.

This method only gets the entries in the given row that are stored on the calling process. Note that if the matrix has an overlapping row Map, it is possible that the calling process does not store all the entries in that row.

Precondition
isLocallyIndexed () && supportsRowViews ()
Postcondition
indices.size () == getNumEntriesInGlobalRow (LocalRow)
Parameters
LocalRow[in] Local index of the row.
Indices[out] Local indices of the columns corresponding to values.
Values[out] Matrix values.

If LocalRow does not belong to this node, then indices is set to null.

virtual void Tpetra::RowMatrix< Scalar, LO , GO , Node >::getLocalDiagCopy ( Vector< Scalar, LO , GO , Node > &  diag) const
pure virtualinherited

Get a copy of the diagonal entries, distributed by the row Map.

On input, the Vector's Map must be the same as the row Map of the matrix. (That is, this->getRowMap ()->isSameAs (* (diag.getMap ())) == true.)

On return, the entries of diag are filled with the diagonal entries of the matrix stored on this process. Note that if the row Map is overlapping, multiple processes may own the same diagonal element. You may combine these overlapping diagonal elements by doing an Export from the row Map Vector to a range Map Vector.

Reimplemented from Tpetra::Operator< Scalar, LO, GO, Node >.

virtual void Tpetra::RowMatrix< Scalar, LO , GO , Node >::leftScale ( const Vector< Scalar, LO , GO , Node > &  x)
pure virtualinherited

Scale the matrix on the left with the given Vector.

On return, for all entries i,j in the matrix, $A(i,j) = x(i)*A(i,j)$.

virtual void Tpetra::RowMatrix< Scalar, LO , GO , Node >::rightScale ( const Vector< Scalar, LO , GO , Node > &  x)
pure virtualinherited

Scale the matrix on the right with the given Vector.

On return, for all entries i,j in the matrix, $A(i,j) = x(j)*A(i,j)$.

virtual Teuchos::RCP<RowMatrix<Scalar, LO , GO , Node> > Tpetra::RowMatrix< Scalar, LO , GO , Node >::add ( const Scalar &  alpha,
const RowMatrix< Scalar, LO , GO , Node > &  A,
const Scalar &  beta,
const Teuchos::RCP< const Map< LO , GO , Node > > &  domainMap = Teuchos::null,
const Teuchos::RCP< const Map< LO , GO , Node > > &  rangeMap = Teuchos::null,
const Teuchos::RCP< Teuchos::ParameterList > &  params = Teuchos::null
) const
virtualinherited

Return a new RowMatrix which is the result of beta*this + alpha*A.

The new RowMatrix is actually a CrsMatrix (which see). Note that RowMatrix is a read-only interface (not counting the left and right scale methods), so it is impossible to implement an in-place add using just that interface.

For brevity, call this matrix B, and the result matrix C. C's row Map will be identical to B's row Map. It is correct, though less efficient, for A and B not to have the same row Maps. We could make C's row Map the union of the two row Maps in that case. However, we don't want row Maps to grow for a repeated sequence of additions with matrices with different row Maps. Furthermore, the fact that the user called this method on B, rather than on A, suggests a preference for using B's distribution. The most reasonable thing to do, then, is to use B's row Map for C.

A and B must have identical or congruent communicators. This method must be called as a collective over B's communicator.

The parameters are optional and may be null. Here are the parameters that this function accepts:

  • "Call fillComplete" (bool): If true, call fillComplete on the result matrix C. This is true by default.
  • "Constructor parameters" (sublist): If provided, give these parameters to C's constructor.
  • "fillComplete parameters" (sublist): If provided, and if "Call fillComplete" is true, then give these parameters to C's fillComplete call.

It is not strictly necessary that a RowMatrix always have a domain and range Map. For example, a CrsMatrix does not have a domain and range Map until after its first fillComplete call. Neither A nor B need to have a domain and range Map in order to call add(). If at least one of them has a domain and range Map, you need not supply a domain and range Map to this method. If you ask this method to call fillComplete on C (it does by default), it will supply the any missing domain or range Maps from either B's or A's (in that order) domain and range Maps. If neither A nor B have a domain and range Map, and if you ask this method to call fillComplete, then you must supply both a domain Map and a range Map to this method.

This method comes with a default implementation, since the RowMatrix interface suffices for implementing it. Subclasses (like CrsMatrix) may override this implementation, for example to improve its performance, given additional knowledge about the subclass. Subclass implementations may need to do a dynamic cast on A in order to know its type.

virtual void Tpetra::RowMatrix< Scalar, LO , GO , Node >::pack ( const Teuchos::ArrayView< const LO > &  exportLIDs,
Teuchos::Array< char > &  exports,
const Teuchos::ArrayView< size_t > &  numPacketsPerLID,
size_t &  constantNumPackets
) const
virtualinherited

Pack this object's data for an Import or Export.

Warning
To be called only by the packAndPrepare method of appropriate classes of DistObject.

Subclasses may override this method to speed up or otherwise improve the implementation by exploiting more specific details of the subclass.

Implements Tpetra::Packable< char, LO >.

virtual void Tpetra::Operator< Scalar, LO , GO , Node >::apply ( const MultiVector< Scalar, LO , GO , Node > &  X,
MultiVector< Scalar, LO , GO , Node > &  Y,
Teuchos::ETransp  mode = Teuchos::NO_TRANS,
Scalar  alpha = Teuchos::ScalarTraits<Scalar>::one(),
Scalar  beta = Teuchos::ScalarTraits<Scalar>::zero()
) const
pure virtualinherited

Computes the operator-multivector application.

Loosely, performs $Y = \alpha \cdot A^{\textrm{mode}} \cdot X + \beta \cdot Y$. However, the details of operation vary according to the values of alpha and beta. Specifically

  • if beta == 0, apply() must overwrite Y, so that any values in Y (including NaNs) are ignored.
  • if alpha == 0, apply() may short-circuit the operator, so that any values in X (including NaNs) are ignored.
virtual bool Tpetra::Operator< Scalar, LO , GO , Node >::hasDiagonal ( ) const
virtualinherited

Whether this operator can return its diagonal.

By default, this returns false. Subclasses must override this method if they can supply a diagonal.

void Tpetra::DistObject< char , LO , GO , Node >::doImport ( const SrcDistObject< char, LO, GO, Node > &  source,
const Import< LO , GO , Node > &  importer,
const CombineMode  CM,
const bool  restrictedMode = false
)
inherited

Import data into this object using an Import object ("forward mode").

The input DistObject is always the source of the data redistribution operation, and the *this object is always the target.

If you don't know the difference between forward and reverse mode, then you probably want forward mode. Use this method with your precomputed Import object if you want to do an Import, else use doExport() with a precomputed Export object.

"Restricted Mode" does two things:

  1. Skips copyAndPermute
  2. Allows the "target" Map of the transfer to be a subset of the Map of *this, in a "locallyFitted" sense.

This cannot be used if (2) is not true, OR there are permutes. The "source" maps still need to match.

Parameters
source[in] The "source" object for redistribution.
importer[in] Precomputed data redistribution plan. Its source Map must be the same as the input DistObject's Map, and its target Map must be the same as this->getMap().
CM[in] How to combine incoming data with the same global index.
void Tpetra::DistObject< char , LO , GO , Node >::doImport ( const SrcDistObject< char, LO, GO, Node > &  source,
const Export< LO , GO , Node > &  exporter,
const CombineMode  CM,
const bool  restrictedMode = false
)
inherited

Import data into this object using an Export object ("reverse mode").

The input DistObject is always the source of the data redistribution operation, and the *this object is always the target.

If you don't know the difference between forward and reverse mode, then you probably want forward mode. Use the version of doImport() that takes a precomputed Import object in that case.

"Restricted Mode" does two things:

  1. Skips copyAndPermute
  2. Allows the "target" Map of the transfer to be a subset of the Map of *this, in a "locallyFitted" sense.

This cannot be used if (2) is not true, OR there are permutes. The "source" maps still need to match.

Parameters
source[in] The "source" object for redistribution.
exporter[in] Precomputed data redistribution plan. Its target Map must be the same as the input DistObject's Map, and its source Map must be the same as this->getMap(). (Note the difference from forward mode.)
CM[in] How to combine incoming data with the same global index.
void Tpetra::DistObject< char , LO , GO , Node >::doExport ( const SrcDistObject< char, LO, GO, Node > &  source,
const Export< LO , GO , Node > &  exporter,
const CombineMode  CM,
const bool  restrictedMode = false
)
inherited

Export data into this object using an Export object ("forward mode").

The input DistObject is always the source of the data redistribution operation, and the *this object is always the target.

If you don't know the difference between forward and reverse mode, then you probably want forward mode. Use this method with your precomputed Export object if you want to do an Export, else use doImport() with a precomputed Import object.

"Restricted Mode" does two things:

  1. Skips copyAndPermute
  2. Allows the "target" Map of the transfer to be a subset of the Map of *this, in a "locallyFitted" sense.

This cannot be used if (2) is not true, OR there are permutes. The "source" maps still need to match.

Parameters
source[in] The "source" object for redistribution.
exporter[in] Precomputed data redistribution plan. Its source Map must be the same as the input DistObject's Map, and its target Map must be the same as this->getMap().
CM[in] How to combine incoming data with the same global index.
void Tpetra::DistObject< char , LO , GO , Node >::doExport ( const SrcDistObject< char, LO, GO, Node > &  source,
const Import< LO , GO , Node > &  importer,
const CombineMode  CM,
const bool  restrictedMode = false
)
inherited

Export data into this object using an Import object ("reverse mode").

The input DistObject is always the source of the data redistribution operation, and the *this object is always the target.

If you don't know the difference between forward and reverse mode, then you probably want forward mode. Use the version of doExport() that takes a precomputed Export object in that case.

"Restricted Mode" does two things:

  1. Skips copyAndPermute
  2. Allows the "target" Map of the transfer to be a subset of the Map of *this, in a "locallyFitted" sense.

This cannot be used if (2) is not true, OR there are permutes. The "source" maps still need to match.

Parameters
source[in] The "source" object for redistribution.
importer[in] Precomputed data redistribution plan. Its target Map must be the same as the input DistObject's Map, and its source Map must be the same as this->getMap(). (Note the difference from forward mode.)
CM[in] How to combine incoming data with the same global index.
bool Tpetra::DistObject< char , LO , GO , Node >::transferArrived ( ) const
inherited

Whether the data from an import/export operation has arrived, and is ready for the unpack and combine step.

bool Tpetra::DistObject< char , LO , GO , Node >::isDistributed ( ) const
inherited

Whether this is a globally distributed object.

For a definition of "globally distributed" (and its opposite, "locally replicated"), see the documentation of Map's isDistributed() method.

virtual Teuchos::RCP<const map_type> Tpetra::DistObject< char , LO , GO , Node >::getMap ( ) const
inlinevirtualinherited

The Map describing the parallel distribution of this object.

Note that some Tpetra objects might be distributed using multiple Map objects. For example, CrsMatrix has both a row Map and a column Map. It is up to the subclass to decide which Map to use when invoking the DistObject constructor.

Definition at line 559 of file Tpetra_DistObject_decl.hpp.

void Tpetra::DistObject< char , LO , GO , Node >::print ( std::ostream &  os) const
inherited

Print this object to the given output stream.

We generally assume that all MPI processes can print to the given stream.

virtual void Tpetra::DistObject< char , LO , GO , Node >::removeEmptyProcessesInPlace ( const Teuchos::RCP< const map_type > &  newMap)
virtualinherited

Remove processes which contain no entries in this object's Map.

Warning
This method is ONLY for use by experts. We highly recommend using the nonmember function of the same name defined in this file.
We make NO promises of backwards compatibility. This method may change or disappear at any time.

On input, this object is distributed over the Map returned by getMap() (the "original Map," with its communicator, the "original communicator"). The input newMap of this method must be the same as the result of calling getMap()->removeEmptyProcesses(). On processes in the original communicator which contain zero entries ("excluded processes," as opposed to "included processes"), the input newMap must be Teuchos::null (which is what getMap()->removeEmptyProcesses() returns anyway).

On included processes, reassign this object's Map (that would be returned by getMap()) to the input newMap, and do any work that needs to be done to restore correct semantics. On excluded processes, free any data that needs freeing, and do any other work that needs to be done to restore correct semantics.

This method has collective semantics over the original communicator. On exit, the only method of this object which is safe to call on excluded processes is the destructor. This implies that subclasses' destructors must not contain communication operations.

Returns
The object's new Map. Its communicator is a new communicator, distinct from the old Map's communicator, which contains a subset of the processes in the old communicator.
Note
The name differs from Map's method removeEmptyProcesses(), in order to emphasize that the operation on DistObject happens in place, modifying the input, whereas the operation removeEmptyProcess() on Map does not modify the input.
To implementers of DistObject subclasses: The default implementation of this class throws std::logic_error.
virtual size_t Tpetra::DistObject< char , LO , GO , Node >::constantNumberOfPackets ( ) const
protectedvirtualinherited

Whether the implementation's instance promises always to have a constant number of packets per LID (local index), and if so, how many packets per LID there are.

If this method returns zero, the instance says that it might possibly have a different number of packets for each LID (local index) to send or receive. If it returns nonzero, the instance promises that the number of packets is the same for all LIDs, and that the return value is this number of packets per LID.

The default implementation of this method returns zero. This does not affect the behavior of doTransfer() in any way. If a nondefault implementation returns nonzero, doTransfer() will use this information to avoid unnecessary allocation and / or resizing of arrays.

virtual void Tpetra::DistObject< char , LO , GO , Node >::doTransfer ( const SrcDistObject< char, LO, GO, Node > &  src,
const ::Tpetra::Details::Transfer< local_ordinal_type, global_ordinal_type, node_type > &  transfer,
const char  modeString[],
const ReverseOption  revOp,
const CombineMode  CM,
const bool  restrictedMode
)
protectedvirtualinherited

Redistribute data across (MPI) processes.

Parameters
src[in] The source object, to redistribute into the target object, which is *this object.
transfer[in] The Export or Import object representing the communication pattern. (Details::Transfer is the common base class of these two objects.)
modeString[in] Human-readable string, for verbose debugging output and error output, explaining what function called this method. Example: "doImport (forward)", "doExport (reverse)".
revOp[in] Whether to do a forward or reverse mode redistribution.
CM[in] The combine mode that describes how to combine values that map to the same global ID on the same process.
virtual bool Tpetra::DistObject< char , LO , GO , Node >::reallocArraysForNumPacketsPerLid ( const size_t  numExportLIDs,
const size_t  numImportLIDs
)
protectedvirtualinherited

Reallocate numExportPacketsPerLID_ and/or numImportPacketsPerLID_, if necessary.

Parameters
numExportLIDs[in] Number of entries in the exportLIDs input array argument of doTransfer().
numImportLIDs[in] Number of entries in the remoteLIDs input array argument of doTransfer().
Returns
Whether we actually reallocated either of the arrays.
Warning
This is an implementation detail of doTransferNew(). This needs to be protected, but that doesn't mean users should call this method.
void Tpetra::DistObject< char , LO , GO , Node >::beginTransfer ( const SrcDistObject< char, LO, GO, Node > &  src,
const ::Tpetra::Details::Transfer< local_ordinal_type, global_ordinal_type, node_type > &  transfer,
const char  modeString[],
const ReverseOption  revOp,
const CombineMode  CM,
const bool  restrictedMode
)
protectedinherited

Implementation detail of doTransfer.

LID DualViews come from the Transfer object given to doTransfer. They are always sync'd on both host and device. Users must never attempt to modify or sync them.

virtual bool Tpetra::DistObject< char , LO , GO , Node >::checkSizes ( const SrcDistObject< char, LO, GO, Node > &  source)
protectedpure virtualinherited

Compare the source and target (this) objects for compatibility.

Returns
True if they are compatible, else false.
virtual void Tpetra::DistObject< char , LO , GO , Node >::copyAndPermute ( const SrcDistObject< char, LO, GO, Node > &  source,
const size_t  numSameIDs,
const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  permuteToLIDs,
const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  permuteFromLIDs,
const CombineMode  CM
)
protectedvirtualinherited

Perform copies and permutations that are local to the calling (MPI) process.

Subclasses must reimplement this function. Its default implementation does nothing. Note that the <t>target object of the Export or Import, namely *this, packs the source object's data.

Precondition
permuteToLIDs and permuteFromLIDs are sync'd to both host and device. That is, permuteToLIDs.need_sync_host(), permuteToLIDs.need_sync_device(), permuteFromLIDs.need_sync_host(), and permuteFromLIDs.need_sync_device() are all false.
Parameters
source[in] On entry, the source object of the Export or Import operation.
numSameIDs[in] The number of elements that are the same on the source and target objects. These elements live on the same process in both the source and target objects.
permuteToLIDs[in] List of the elements that are permuted. They are listed by their local index (LID) in the destination object.
permuteFromLIDs[in] List of the elements that are permuted. They are listed by their local index (LID) in the source object.
CM[in] CombineMode to be used during copyAndPermute; may or may not be used by the particular object being called; behavior with respect to CombineMode may differ by object.
virtual void Tpetra::DistObject< char , LO , GO , Node >::copyAndPermute ( const SrcDistObject< char, LO, GO, Node > &  source,
const size_t  numSameIDs,
const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  permuteToLIDs,
const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  permuteFromLIDs,
const CombineMode  CM,
const execution_space space
)
protectedvirtualinherited

Same as copyAndPermute, but do operations in space.

virtual void Tpetra::DistObject< char , LO , GO , Node >::packAndPrepare ( const SrcDistObject< char, LO, GO, Node > &  source,
const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  exportLIDs,
Kokkos::DualView< packet_type *, buffer_device_type > &  exports,
Kokkos::DualView< size_t *, buffer_device_type numPacketsPerLID,
size_t &  constantNumPackets
)
protectedvirtualinherited

Pack data and metadata for communication (sends).

Subclasses must reimplement this function. Its default implementation does nothing. Note that the <t>target object of the Export or Import, namely *this, packs the source object's data.

Precondition
exportLIDs is sync'd to both host and device. That is, exportLIDs.need_sync_host () and exportLIDs.need_sync_device() are both false.
Parameters
source[in] Source object for the redistribution.
exportLIDs[in] List of the entries (as local IDs in the source object) that Tpetra will send to other processes.
exports[out] On exit, the packed data to send. Implementations must reallocate this as needed (prefer reusing the existing allocation if possible), and may modify and/or sync this wherever they like.
numPacketsPerLID[out] On exit, the implementation of this method must do one of two things: either set numPacketsPerLID[i] to the number of packets to be packed for exportLIDs[i] and set constantNumPackets to zero, or set constantNumPackets to a nonzero value. If the latter, the implementation must not modify the entries of numPacketsPerLID. If the former, the implementation may sync numPacketsPerLID this wherever it likes, either to host or to device. The allocation belongs to DistObject, not to subclasses; don't be tempted to change this to pass by reference.
constantNumPackets[out] On exit, 0 if the number of packets per LID could differ, else (if nonzero) the number of packets per LID (which must be constant).
virtual void Tpetra::DistObject< char , LO , GO , Node >::packAndPrepare ( const SrcDistObject< char, LO, GO, Node > &  source,
const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  exportLIDs,
Kokkos::DualView< packet_type *, buffer_device_type > &  exports,
Kokkos::DualView< size_t *, buffer_device_type numPacketsPerLID,
size_t &  constantNumPackets,
const execution_space space
)
protectedvirtualinherited

Same as packAndPrepare, but in an execution space instance.

virtual void Tpetra::DistObject< char , LO , GO , Node >::unpackAndCombine ( const Kokkos::DualView< const local_ordinal_type *, buffer_device_type > &  importLIDs,
Kokkos::DualView< packet_type *, buffer_device_type imports,
Kokkos::DualView< size_t *, buffer_device_type numPacketsPerLID,
const size_t  constantNumPackets,
const CombineMode  combineMode
)
protectedvirtualinherited

Perform any unpacking and combining after communication.

Subclasses must reimplement this function. Its default implementation does nothing. Note that the <t>target object of the Export or Import, namely *this, unpacks the received data into itself, possibly modifying its entries.

Precondition
importLIDs is sync'd to both host and device. That is, importLIDs.need_sync_host () and importLIDs.need_sync_device() are both false.
Parameters
importLIDs[in] List of the entries (as LIDs in the destination object) we received from other processes.
imports[in/out] On input: Buffer of received data to unpack. DistObject promises nothing about where this is sync'd. Implementations may sync this wherever they like, either to host or to device. The allocation belongs to DistObject, not to subclasses; don't be tempted to change this to pass by reference.
numPacketsPerLID[in/out] On input: If constantNumPackets is zero, then numPacketsPerLID[i] contains the number of packets imported for importLIDs[i]. DistObject promises nothing about where this is sync'd. Implementations may sync this wherever they like, either to host or to device. The allocation belongs to DistObject, not to subclasses; don't be tempted to change this to pass by reference.
constantNumPackets[in] If nonzero, then the number of packets per LID is the same for all entries ("constant") and constantNumPackets is that number. If zero, then numPacketsPerLID[i] is the number of packets to unpack for LID importLIDs[i].
combineMode[in] The CombineMode to use when combining the imported entries with existing entries.
virtual bool Tpetra::DistObject< char , LO , GO , Node >::reallocImportsIfNeeded ( const size_t  newSize,
const bool  verbose,
const std::string *  prefix,
const bool  remoteLIDsContiguous = false,
const CombineMode  CM = INSERT
)
protectedvirtualinherited

Reallocate imports_ if needed.

This unfortunately must be declared protected, for the same reason that imports_ is declared protected.

Parameters
newSize[in] New size of imports_.
verbose[in] Whether to print verbose debugging output to stderr on every (MPI) process in the communicator.
prefix[in] If verbose is true, then this is a nonnull prefix to print at the beginning of each line of verbose debugging output. Otherwise, not used.
Returns
Whether we actually reallocated.

We don't need a "reallocExportsIfNeeded" method, because exports_ always gets passed into packAndPrepare() by nonconst reference. Thus, that method can resize the DualView without needing to call other DistObject methods.

Member Data Documentation

Teuchos::RCP<const map_type> Tpetra::DistObject< char , LO , GO , Node >::map_
protectedinherited

The Map over which this object is distributed.

Definition at line 968 of file Tpetra_DistObject_decl.hpp.

Kokkos::DualView<packet_type*, buffer_device_type> Tpetra::DistObject< char , LO , GO , Node >::imports_
protectedinherited

Buffer into which packed data are imported (received from other processes).

Unfortunately, I had to declare these protected, because CrsMatrix uses them at one point. Please, nobody else use them.

Definition at line 981 of file Tpetra_DistObject_decl.hpp.

Kokkos::DualView<size_t*, buffer_device_type> Tpetra::DistObject< char , LO , GO , Node >::numImportPacketsPerLID_
protectedinherited

Number of packets to receive for each receive operation.

This array is used in Distributor::doPosts() (and doReversePosts()) when starting the ireceive operation.

This may be ignored in doTransfer() if constantNumPackets is nonzero, indicating a constant number of packets per LID. (For example, MultiVector sets the constantNumPackets output argument of packAndPrepare() to the number of columns in the multivector.)

Unfortunately, I had to declare this protected, because CrsMatrix uses it at one point. Please, nobody else use it.

Definition at line 1021 of file Tpetra_DistObject_decl.hpp.

Kokkos::DualView<packet_type*, buffer_device_type> Tpetra::DistObject< char , LO , GO , Node >::exports_
protectedinherited

Buffer from which packed data are exported (sent to other processes).

Unfortunately, I had to declare this protected, because CrsMatrix uses it at one point. Please, nobody else use it.

Definition at line 1028 of file Tpetra_DistObject_decl.hpp.

Kokkos::DualView<size_t*, buffer_device_type> Tpetra::DistObject< char , LO , GO , Node >::numExportPacketsPerLID_
protectedinherited

Number of packets to send for each send operation.

This array is used in Distributor::doPosts() (and doReversePosts()) for preparing for the send operation.

This may be ignored in doTransfer() if constantNumPackets is nonzero, indicating a constant number of packets per LID. (For example, MultiVector sets the constantNumPackets output argument of packAndPrepare() to the number of columns in the multivector.)

Unfortunately, I had to declare this protected, because CrsMatrix uses them at one point. Please, nobody else use it.

Definition at line 1043 of file Tpetra_DistObject_decl.hpp.


The documentation for this class was generated from the following files:
