An abstract base class for converting FunctionObjects to and from XML. More...

#include <Teuchos_FunctionObjectXMLConverter.hpp>

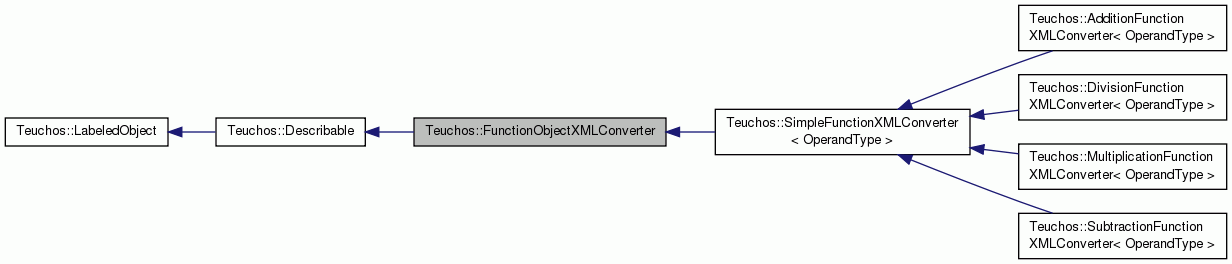

Inheritance diagram for Teuchos::FunctionObjectXMLConverter:

Converter Functions
RCP< FunctionObject >	fromXMLtoFunctionObject (const XMLObject &xmlObj) const
	Converts a given XMLObject to a FunctionObject. More...

virtual RCP< FunctionObject >	convertXML (const XMLObject &xmlObj) const =0
	Preforms any and all special xml conversion that is specific to a particular FunctionObject. More...

XMLObject	fromFunctionObjecttoXML (const RCP< const FunctionObject > function) const
	Converters a given FunctionObject to XML. More...

virtual void	convertFunctionObject (const RCP< const FunctionObject > function, XMLObject &xmlObj) const =0
	Preforms any and all special FunctionObject conversion that is specific to a particlar FunctionObject. More...

Attribute/Query Functions
static const std::string &	getTypeAttributeName ()

Additional Inherited Members
Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const
	Return a simple one-line description of this object. More...

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Print the object with some verbosity level to a FancyOStream. More...

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Version of describe() that takes an std::ostream instead of a FancyOStream. More...

virtual	~Describable ()
	Destructor (marked virtual for memory safety of derived classes). More...

Public Member Functions inherited from Teuchos::LabeledObject
	LabeledObject ()
	Construct with an empty label. More...

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)
	Set the object label (see LabeledObject). More...

virtual std::string	getObjectLabel () const
	Get the object label (see LabeledObject). More...

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default = VERB_DEFAULT
	Default value for the `verbLevel` argument of describe(). More...

Related Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)
	Describable output stream manipulator. More...

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)
	Output stream operator for Describable manipulator. More...

Detailed Description

An abstract base class for converting FunctionObjects to and from XML.

Definition at line 32 of file Teuchos_FunctionObjectXMLConverter.hpp.

Member Function Documentation

RCP< FunctionObject > Teuchos::FunctionObjectXMLConverter::fromXMLtoFunctionObject ( const XMLObject & xmlObj ) const

Converts a given XMLObject to a FunctionObject.

Parameters

xmlObj The XMLObject to convert to a FunctionObject.

Returns: The converted FunctionObject.

Definition at line 16 of file Teuchos_FunctionObjectXMLConverter.cpp.

virtual RCP<FunctionObject> Teuchos::FunctionObjectXMLConverter::convertXML ( const XMLObject & xmlObj ) const

pure virtual

Preforms any and all special xml conversion that is specific to a particular FunctionObject.

Parameters

xmlObj The xml to be converted.

Returns: The converted FunctionObject.

Implemented in Teuchos::SimpleFunctionXMLConverter< OperandType >.

XMLObject Teuchos::FunctionObjectXMLConverter::fromFunctionObjecttoXML ( const RCP< const FunctionObject > function ) const

Converters a given FunctionObject to XML.

Parameters

function The FunctionObject to be converted to XML.

Returns: An XML representation of the given FunctionObject.

Definition at line 23 of file Teuchos_FunctionObjectXMLConverter.cpp.

virtual void Teuchos::FunctionObjectXMLConverter::convertFunctionObject	(	const RCP< const FunctionObject >	function,
		XMLObject &	xmlObj
	)		const

pure virtual

Preforms any and all special FunctionObject conversion that is specific to a particlar FunctionObject.

Parameters

function	The FunctionObject to be converted.
xmlObj	The XMLObject to store all serialization in.

Implemented in Teuchos::SimpleFunctionXMLConverter< OperandType >.

static const std::string& Teuchos::FunctionObjectXMLConverter::getTypeAttributeName ( )

inlinestatic

Definition at line 79 of file Teuchos_FunctionObjectXMLConverter.hpp.
