Optika_GUI.hpp File Reference

A collection of functions and an Object that serve as the primary interface to the Optika package allowing application developers to obtain user input. More...

#include "Optika_metawindow.hpp"

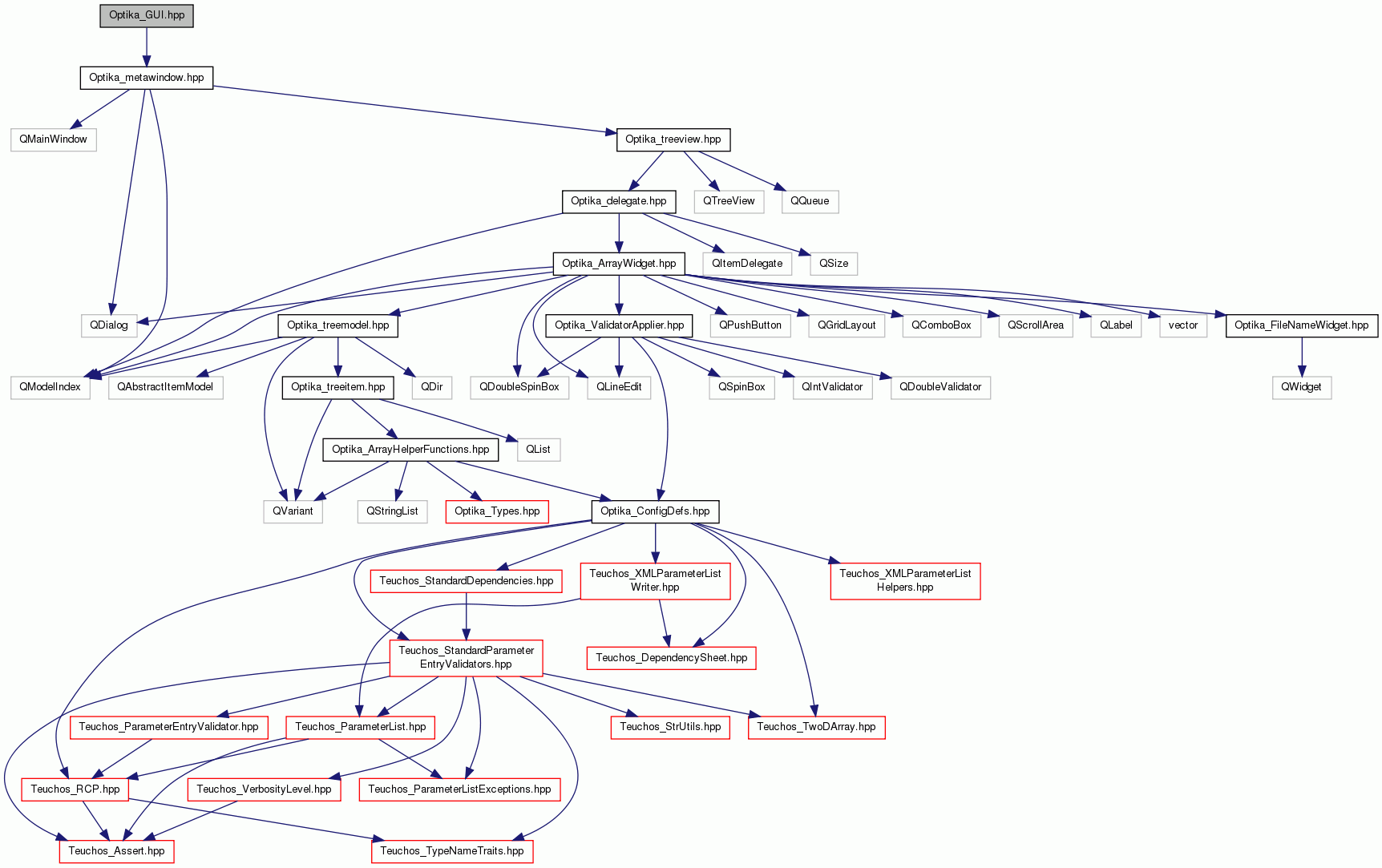

Include dependency graph for Optika_GUI.hpp:

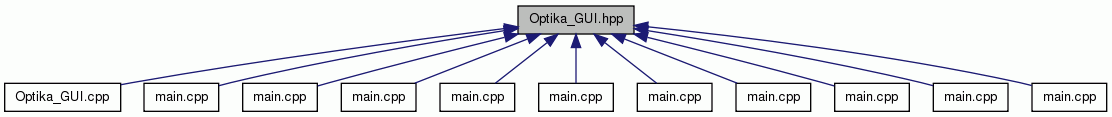

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	Optika::OptikaGUI
	A class that allows the user to create and customize their Optika GUI. More...

Namespaces
	Optika

Basic Input Getting Function
void	Optika::getInput (RCP< ParameterList > validParameters, RCP< DependencySheet > dependencySheet=null, void(*customFunc)(RCP< const ParameterList >)=NULL)
	Retreives the input for a Teuchos Parameter List using a GUI. Note the Parameter List will be edited. All user input will be stored in it. Also runs the function specified whenever the user clicks the action button and uses the specified dependency list. More...
void	Optika::getInput (const std::string &nameOfXmlFile, RCP< ParameterList > &userInput, void(*customFunc)(RCP< const ParameterList >)=NULL)
	Reads in a set of parameters and dependencies from the specified xmlfile, displays a GUI, and stores the users input in the sprecified ParameterList. If a custom function is provided, it is run upon the user clicking the action button. More...
void	Optika::getInputExtraOptions (RCP< ParameterList > validParameters, RCP< DependencySheet > dependencySheet=null, std::string styleSheetFilePath="", std::string iconFilePath="", void(*customFunc)(RCP< const ParameterList >)=NULL)
	Retreives the input for a Teuchos Parameter List using a GUI. Note the Parameter List will be edited. All user input will be stored in it. Also runs the function specified whenever the user clicks the action button and uses the specified dependency list. One more button will be available that will not ask user for saving the file. A Qt stylesheet file can be passed too. More...
void	Optika::getInputExtraOptions (const std::string &nameOfXmlFile, RCP< ParameterList > &userInput, std::string styleSheetFilePath="", std::string iconFilePath="", void(*customFunc)(RCP< const ParameterList >)=NULL)
	Reads in a set of parameters and dependencies from the specified xmlfile, displays a GUI, and stores the users input in the sprecified ParameterList. If a custom function is provided, it is run upon the user clicking the action button. One more button will be available that will not ask user for saving the file. A Qt stylesheet file can be passed too. More...

Detailed Description

A collection of functions and an Object that serve as the primary interface to the Optika package allowing application developers to obtain user input.

Definition in file Optika_GUI.hpp.
